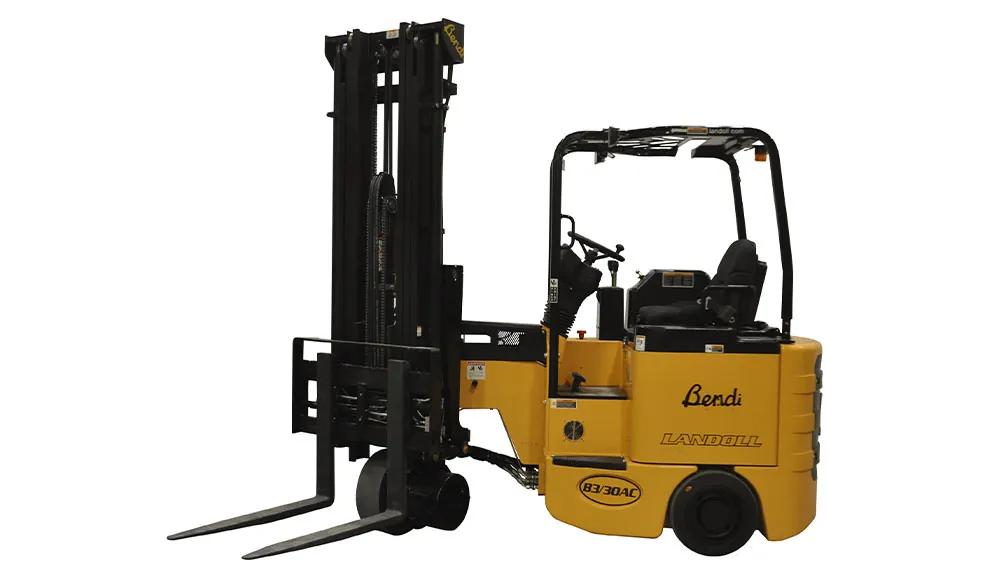

Bendi B3/30AC Forklift
Details
The Bendi B3/30AC works in aisles as narrow as *72″ (1.8 M), has a basic capacity of 3,000 lbs. (1361 kg) at 24″ (600 mm) load center and has lift heights available to 30′ (9.14 M).
The Bendi B3/30AC is a 3-wheel articulating forklift with a single poly front drive tire and solid rubber rear tires. Front articulation of 220°, narrow mast and a compact front end allow easy stacking in Very Narrow Aisles. The B3/30AC can work inside and outside on paved surfaces. The B3/30AC does all the jobs of a reach truck in aisles at least 40″ (1 M) smaller.
Exceptional Performance and Maneuverability
Equipped with the LandActive control and the Landoll DuraSteerTM front wheel hydraulic steering, the B3/30AC provides exceptional control and makes load placement and retrieval superior to the competition.
Maximizes Material Handling Productivity
The versatile Bendi B3/30AC forklift replaces conventional reach and counterbalanced fork trucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, while operating in very narrow aisles in your warehouse, replacing reach trucks that require much wider aisles. All tires on the Bendi B3/30AC are 18″ (457 mm) diameter and the truck has great under clearance for avoiding floor obstructions.
*Based on 48” (1200 mm) long x 40” (1000 mm) wide load.
- Equipment Type
- 3 Wheel Electric Forklift Trucks / Forklifts
Capacity:
3,000 lbs (1,361 kg)
Truck Weight With Battery:
12,800 lbs (5,818 kg)
Travel Speed:
Loaded: 5.5 mph (8.9kph)
Unloaded: 6 mph (9.7 kph)
Lift Speed:
Loaded: 90 fpm (27.4 mpm)
Unloaded: 110 fpm (33.5 mpm)
Lowering Speed:
Loaded: 100 fpm (30.5 mpm)
Unloaded: 90 fpm (27.4 mpm)
Wheelbase (Mast Vertical):
72.6 in (1,844 mm)
Chassis Width:
44.8 in (1,138 mm)
Max Lift Height:
360 in (9.14 m)
- 3,000 lb. (1361 kg) Capacity at 24″ (600 mm) Load Center
- 3-Wheel Design, Single Front Wheel Drive Provides Excellent Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Integral Sideshifter Makes Placing and Picking Loads Effortless
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- LandActive Control Provides Enhanced Traction Control Based on Steering Angle
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- High Visibility Mast Allows Optimum Safety and Control
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System and Large Capacity Battery Compartment
- Optional Cold Storage Conditioned to -22°F (-30°C)
