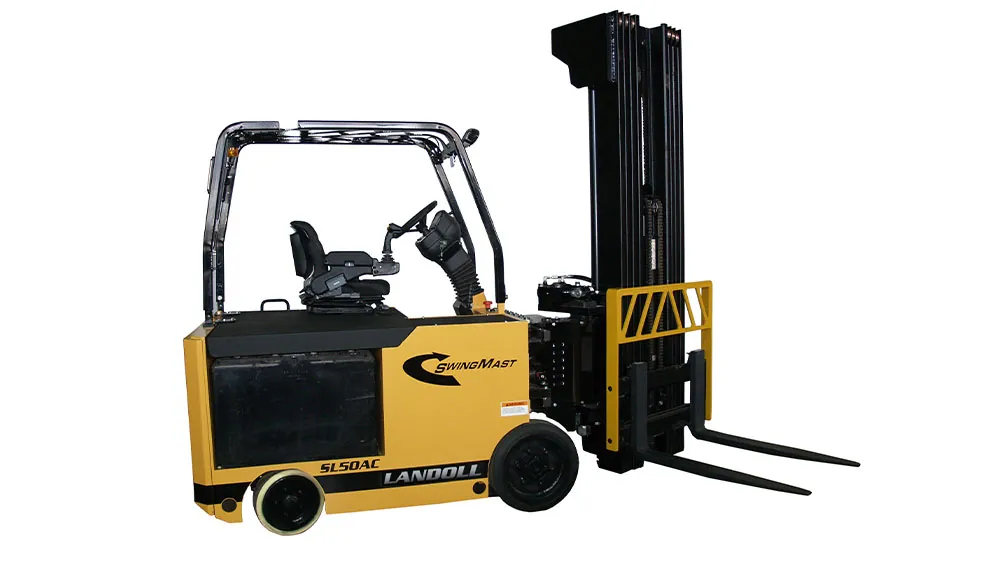

Drexel SL50AC Forklift
Details
The Drexel SL50AC works in aisles as narrow as 56″ (1.4 M), has a basic capacity of 5,000 lbs. at 24″ (600 mm) load center, and has lift heights available to 31′ (9.5 M).
The SL50AC is a 4-Wheel SwingMast® VNA and Side Loading Forklift with independently driven front wheels and dual rear steer tires. The front mast rotates 90° and has side shift of 22” (559 mm), allowing easy stacking in Very Narrow Aisles. This model can work inside and outside on paved surfaces and can perform the jobs of a normal front loading and side loading forklift including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, cantilever rack, push back rack, double deep and climbing steep ramps. The SL range does the jobs of reach, counterbalanced trucks in aisles over 50% smaller. The ability to store and transport long loads as a side loader increases versatility and maximizes utilization.
Exceptional Performance and Maneuverability
The SL50AC’s fast lift/lower and travel speeds and tight turning radius provides excellent maneuverability and productivity. The optional roll-out battery compartment allows fast battery changes for multi-shift operations. High Visibility three and four stage masts are available for a wide range of applications including those with low overhead obstructions still requiring high lift heights. Wire Guidance is a standard option on these models allowing safe, full-speed travel in the narrowest aisles.
Maximizes Material Handling Productivity
The versatile SL50AC forklift replaces conventional reach and counterbalanced fork trucks in standard warehouse pallet handling operations. The unique design allows operators to use it as a counterbalance truck indoors or out, operates in very narrow aisles in the warehouse, replacing reach and counterbalanced trucks that require much wider aisles. The operator’s compartment is offset providing a long load-carrying side deck so these trucks can be used as side loaders. The front tires are 20″ (508 mm) diameter and the rear/steer tires are 14” (356 mm) diameter providing great underclearance for avoiding floor obstructions. The rear steer axle is articulated to provide a smooth ride over rough floor conditions.
- Equipment Type
- 4 Wheel Electric Forklift Trucks / Forklifts
Capacity:
5,000 lbs (2,268 kg)
Power Source:
Battery, Electric 48V
Weight With Battery:
15,100 lbs (6,864 kg)
Travel Speed:
Loaded: 6.5 mph (10.5 kph)
Unloaded: 7 mph (11.3 kph)
Lift Speed:
Loaded: 90 fpm (27.4 mpm)
Unloaded: 110 fpm (33.4 mpm)
Lower Speed:
Loaded: 100 fpm (30.5 mpm)
Unloaded: 90 fpm (27.4 mpm)
Wheelbase:
53.5 in (1,359 mm)
Chassis Width:
46 in (1,168 mm)
Turning Radius:
83 in (2,108 mm)
Max Lift Height:
374 in (9.5 m)
- 5,000 lb. (2268 kg) Capacity at 24″ (600 mm) Load Center
- Four-Wheel Design, Independently Driven Front-Drive Wheels and Dual Rear-Steering Wheels Provide Excellent Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Single Joystick Controls Hydraulic Functions, Directional Control, Horn and Wire Guidance
- Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Adjustable Swivel Seat Improves Operator Comfort while Traveling in Reverse
- Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
- High Visibility Mast Allows Optimum Safety and View of Loads and Forks
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System
- Optional Cold Storage Conditioned to -22°F (-30°C)
