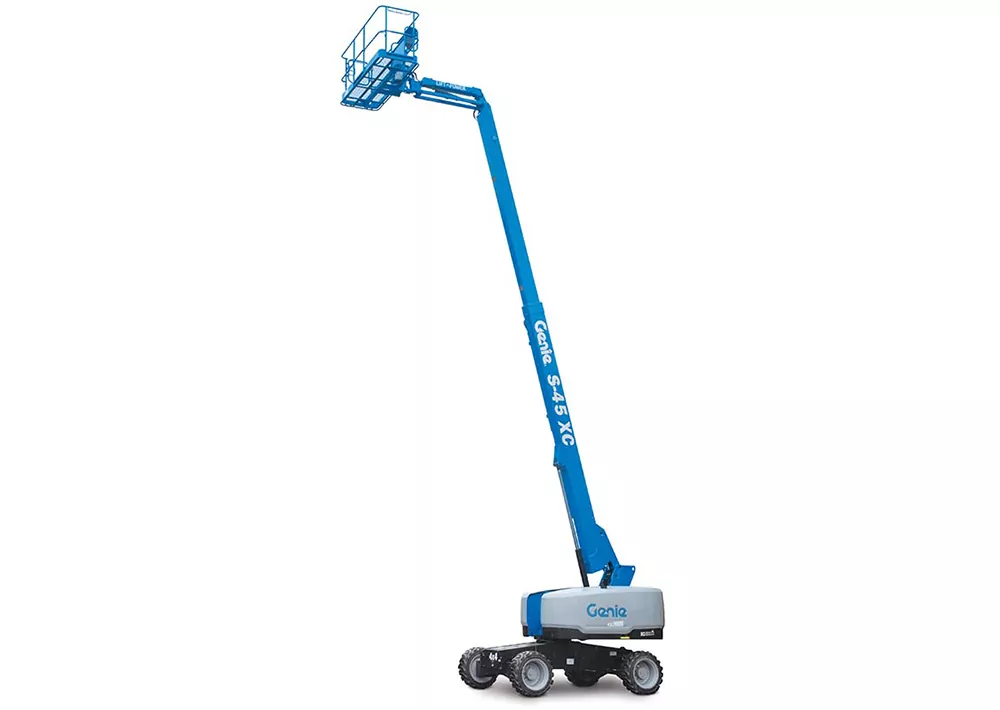

Genie S-40 XC, S-40 TraX and S-45 XC, S-45 TraX Boom Lift
Details
Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-40 XC™ and S-45 XC telescopic booms — offering a dual lift capacity of 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted and up to three people on board. These models are also available with a fixed, four-point track system that allows contractors to work any time of the year.
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Max Working Height:
S-40 XC: 45 ft 6 in
S-45 XC: 50 ft 6 in
Max Horizontal Reach:
S-40 XC: 31 ft 1 in
S-45 XC: 36 ft 2 in
Below Ground Reach:
S-40 XC: 1 ft
S-45 XC: 4 ft 2 in
Platform Capacity:
Restricted: 1,000 lbs
Unrestricted: 660 lbs
Machine Width and Length:
S-40 XC: 8 ft 2 in x 26 ft 4 in
S-45 XC: 8 ft 2 in x 31 ft 1 in
- 660 lb (300 kg)/1,000 lb (454 kg) dual platform capacity
- Load sense technology for accurate load weighing and zero-load field calibration
- Automatic envelope control enables boom to retract when it reaches its operating envelope
- Chassis tilt sensor technology maximizes operators’ ability to access hard-to-reach work areas
- Robust jib is capable of easily handling increased maximum capacity
- CAN-bus control system with onboard diagnostics maximizes serviceability
- Design focus on user interface and simplicity makes this machine easy-to-use
- Can be equipped with the new Genie Lift Power™ generator system
- Commonality in design and parts with other Genie booms
- S-40 TraX and S-45 TraX patented track design features 4 independent tracks, swiveling vertically up to 20° for a smooth drive on rough ground conditions
- S-40 TraX and S-45 TraX 30° steer angle for easy maneuvering
