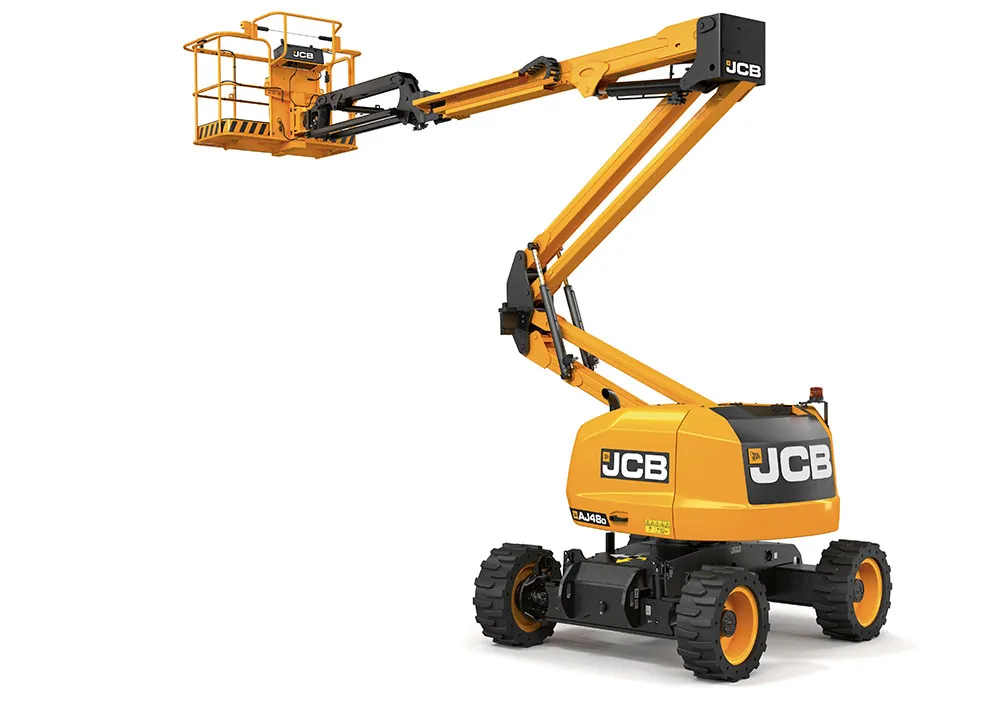

JCB AJ48D Boom Lift
Details
JCB‘s new articulated boom model is the most versatile access platform they’ve ever produced. With its market leading 48ft platform height and increased working envelope, no area is out of reach. The JCB AJ48D also comes with JCB Livelink as standard, our industry-leading telematics solution.
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Boom Type:
Articulated
Max Outreach:
27 ft 4 in
Max Platform Capacity:
2 people
Max Working Height:
54 ft 3 in
Platform Height:
48 ft 4 in
Power Type:
Diesel
Weight:
17,383 lbs
Width:
7 ft 5 in
Wheelbase:
6 ft 8 in
Length (stowed):
24 ft 1 in
Height (stowed):
7 ft 4 in
Tail Swing:
5 in
Ground Clearance:
1 ft
Platform Length:
2 ft 9 in
Platform Width:
6 ft
Platform Height:
3 ft 7 in
Entry Type:
Gate
Platform Capacity:
551 lbs
System Voltage:
12 V
Engine Make:
Kohler
Engine Power:
48 HP
Fuel Tank Capacity:
15.6 gallons
Max Stowed Speed:
4 MPH
Max Raised Speed:
0.68 MPH
Turning Radius:
Inside: 8 ft 10 in
Outside: 15 ft 5 in
- User friendly control panel and joystick layout coupled with function speed control, provides smooth, stable operation.
- Safe and Secure: Auxiliary handrail provides enhanced protection against crush injuries to the operator.
- Efficiency Built In: Colour base display provides the highest level of machine feedback, including platform load and diagnostics.
- Built to Last: Electrical components are rated at IP67, enabling work in the toughest of rental environments.
- Best-In-Class: 48ft platform height provides the greatest working envelope in its size class.
- 7″ touchscreen display
- Platform tool tray
- Secondary guarding
- Full height entry gate
- Solid rough terrain tires
- Pull-out engine tray
- 4-Wheel drive
