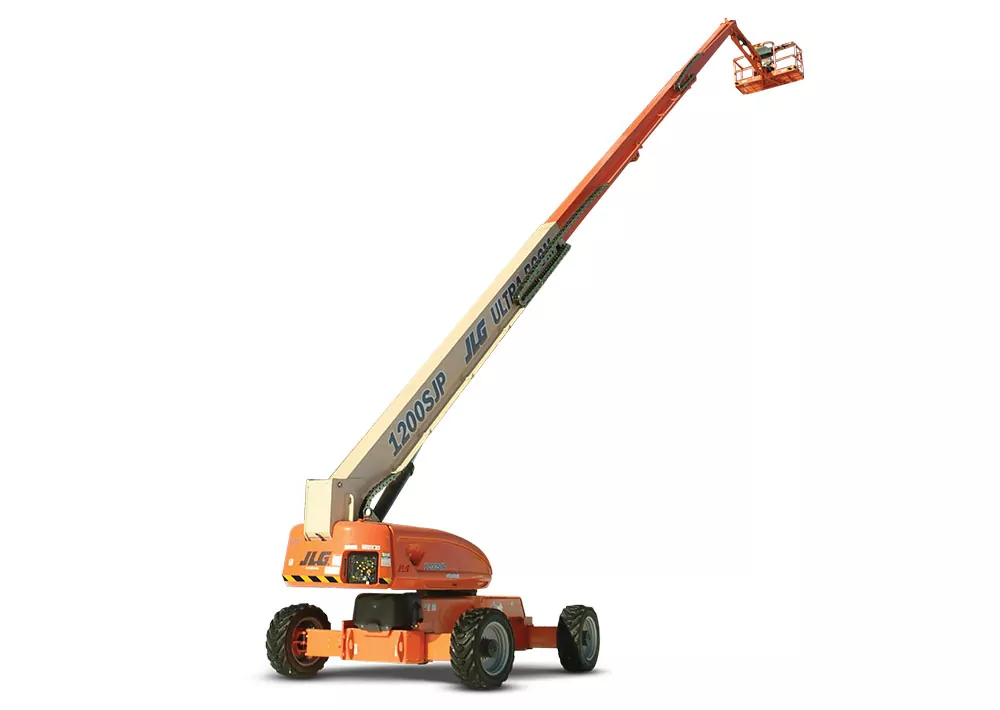

JLG 1200SJP Boom Lift
Details
Dominate the job site with the JLG 1200SJP Ultra telescopic boom lift. When you’re working twelve stories high or more, you want a telescopic boom lift that’s built to perform, and that’s exactly what you get with the Ultra Series. These telescoping lifts were designed for rugged job sites like steel mills, chemical plants, airports, shipyards and heavy construction. They feature an ultra strong 100,000 PSI steel boom, giving you the confidence and support you need to handle 1,000 lb of capacity. And their exclusive controlled arc regulates speeds at the edges of the work envelope, so you feel the same velocity in all positions for enhanced comfort.
Key Specs
- Platform Height: 120 ft / 36.58 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 75 ft / 22.86 m
Key Features
- Ground to 120 ft up in 95 seconds
- Stability and capacity from 100,000-psi steel and a dual 1,000 / 500 lb capacity
- Equipped with a fuel-efficient Tier 4 engine
- Equipment Type
- Aerial Lifts / Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
31 gal. / 117.35 L
Engine Type – Diesel:
DEUTZ TCD2.9L4 Tier 4 Final 74.2 Hp
Axle Oscillation:
1 ft / 0.3 m
Drive Speed – 4WD:
3.3 mph / 5.23 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Restricted:
1000 lb / 453.59 kg
Platform Capacity – Unrestricted:
500 lb / 226.80 kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside (axles extended):
19 ft 4 in. / 5.89 m
Turning Radius – Outside (axles retracted):
22 ft 6 in. / 6.86 m
Jib – Range of Articulation:
130 Degrees
Transport Length:
39 ft 8 in. / 12.09 m
Ground Clearance:
1 ft / 0.3 m
Horizontal Jib Rotation:
180 Degrees
Platform Height:
120 ft / 36.58 m
Horizontal Outreach:
75 ft / 22.86 m
Machine Weight:
40900 lb / 18551.93 kg
- Ground to 120 ft up in 95 seconds
- Stability and capacity from 100,000-psi steel and a dual 1,000 / 500 lb capacity
- Equipped with a fuel-efficient Tier 4 engine
