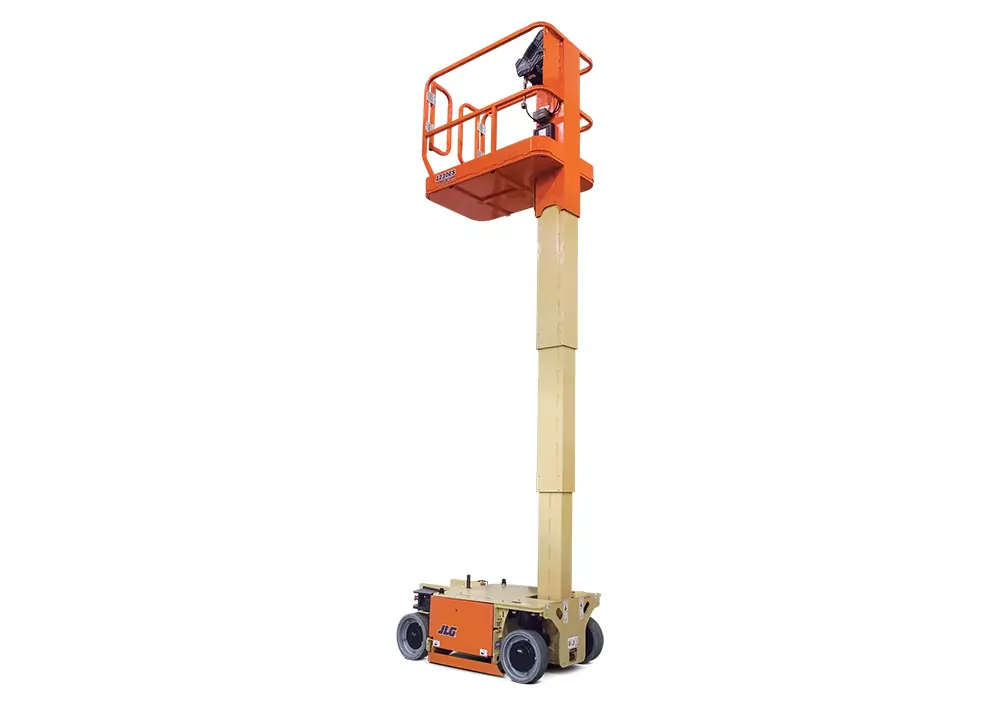

JLG 1230ES Vertical Lift
Details
The JLG 1230ES mast lift is compact enough to fit in a freight elevator and lightweight enough to be used on weight-sensitive floors. A platform height of 12 ft allows you to work comfortably at 18 ft. A super-efficient electric drive increases uptime—plus, this vertical mast lift is extremely low maintenance.
Key Specs
- Platform Height: 12 ft / 3.66 m
- Machine Width: 2 ft 6 in. / 0.76 m
- Machine Weight: 1765 lb / 800.59 kg
Key Features
- Low maintenance, energy efficient and environmentally clean
- Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
- Lightweight design for transport in freight elevators
- Equipment Type
- Aerial Lifts / New Vertical Lifts and Stock Pickers
Ground Clearance:
3 in. / 0.06 m
Ground Entry Height:
1 ft 10 in. / 0.56 m
Machine Height:
5 ft 5 in. / 1.65 m
Machine Length:
4 ft 6 in. / 1.37 m
Machine Width:
2 ft 6 in. / 0.76 m
Platform Height:
12 ft / 3.66 m
Working Height:
18 ft / 5.49 m
Drive Speed – Platform Elevated:
0.5 mph / 0.80 km/h
Drive Speed – Platform Lowered:
3 mph / 4.83 km/h
Drive System:
24V Electric, 5.9 kW 8 hp
Grade-ability:
25 %
Maximum Drive Height:
12 ft / 3.66 m
Maximum Lift Height:
12 ft / 3.66
Platform Capacity:
500 lb / 226.80 kg
Machine Weight:
1765 lb / 800.59 kg
Batteries:
4 x 6V, 220 A-h
- Low maintenance, energy efficient and environmentally clean
- Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
- Lightweight design for transport in freight elevators
