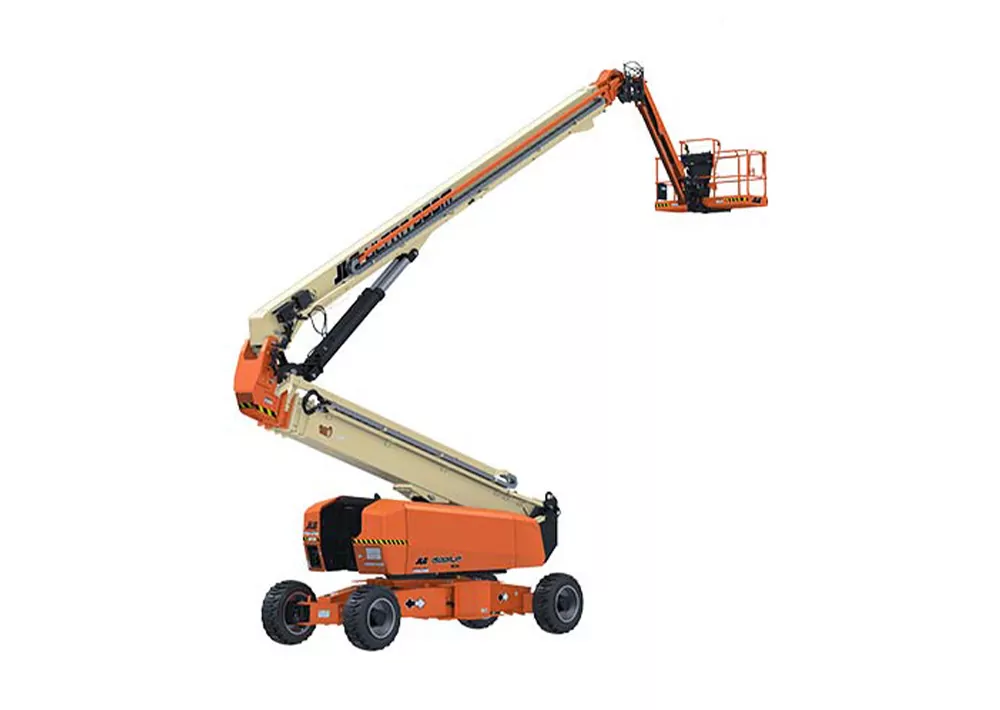

JLG 1500AJP Boom Lift
Details
The JLG 1500AJP boom lift delivers the reach, versatility, and performance required for demanding applications in steel mills, chemical plants, airports, convention centers, shipyards, and construction sites. With 60 feet of up-and-over height and 75 feet of outreach, it helps operators access hard-to-reach work areas efficiently.
The QuikStik boom design reaches full elevation in as little as 180 seconds, helping crews improve productivity on the jobsite. An articulating boom provides the flexibility to work around obstacles while maintaining access at significant heights. This combination of reach, speed, and maneuverability makes the JLG 1500AJP well suited for high-reach applications in demanding environments.
Key Specs
- Platform Height: 150 ft / 45.72 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 600 lb / 272.16 kg
Key Features
- Jib pivots vertically and horizontally for better access to elevated work sites.
- Lift more with class leading capacity
- Fast lift speeds – spend more time working, less time positioning
- No oversized load permit needed (over weight permit is required for highway transportation)
- Now available with the ClearSky™ telematics platform, so you can easily manage and maintain your fleet. Contact your JLG® sales representative for details.
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
45 gal. / 170.34 L
Engine Type – Diesel:
Deutz TCD 3.6 T4F 99.8 Hp
Engine Type – Diesel (LRC):
Deutz TCD 3.6 T4F 99.8 Hp
Drive Speed – 4WD:
2.8 mph / 4.51 km/h
Grade-ability – 4WD:
40 %
Platform Capacity – Restricted:
1000 lb / 453.59 kg
Platform Capacity – Unrestricted:
600 lb / 272.16Â kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside (axles extended):
21 ft 8 in. / 6.6 m
Turning Radius – Outside (axles retracted):
31 ft 3 in. / 9.53 m
Jib – Range of Articulation:
130 Degrees
Transport Length:
39 ft 8 in. / 12.09 m
Ground Clearance:
1 ft / 0.3 m
Horizontal Jib Rotation:
125 Degrees
Platform Height:
150 ft / 45.72 m
Up and Over Height:
60 ft / 18.29 m
Working Height:
156 ft / 47.55 m
Machine Weight (ANSI Export and CSA):
57400 lb / 26036.20 kg
- Jib pivots vertically and horizontally for better access to elevated work sites.
- Lift more with class leading capacity
- Fast lift speeds – spend more time working, less time positioning
- No oversized load permit needed (over weight permit is required for highway transportation)
- Now available with the ClearSky™ telematics platform, so you can easily manage and maintain your fleet. Contact your JLG® sales representative for details.
