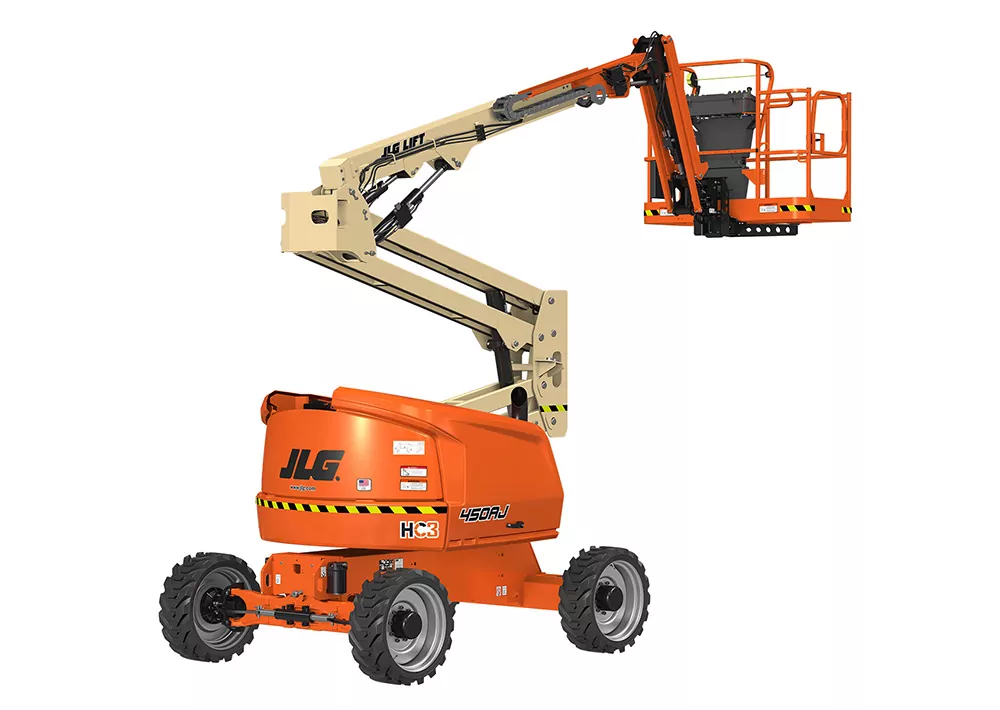

JLG 450AJ HC3 Boom Lift
Details
On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. The articulating lift delivers exceptional outreach, high capacity, versatile performance, and easy maintenance. Its large work envelope helps operators reach over and around obstacles to access hard-to-reach work areas.
The 450 Series helps operators work efficiently around complex structures and in space-constrained areas. The Hi-Capacity model features three capacity zones, allowing up to three occupants and their tools to work at height without sacrificing performance.
Key Specs
- Platform Height: 45 ft / 13.72 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Restricted 2: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 660 lb / 299.37 kg
- Horizontal Outreach: 25 ft / 7.62 m
Key Features
- More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform
- Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine
- Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
16 gal. / 60.57 L
Engine Type – Diesel:
Deutz D2.9 L4 Tier 4 Final 49 hp
Engine Type – Dual Fuel:
Kubota DF WG2503 61 hp
Axle Oscillation:
4 in. / 0.1 m
Drive Speed – 4WD:
4.3 mph / 6.84 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Unrestricted:
550 lb / 249.48 kg
Swing:
355 Degrees
Swing Type:
Non-Continuous
Turning Radius – Outside:
15 ft 8 in. / 4.78 m
Jib – Range of Articulation:
144 Degrees
Ground Clearance:
1 ft. / 0.3 m
Horizontal Outreach:
25 ft / 7.62 m
Platform Height:
45 ft / 13.72 m
Up and Over Height:
20 ft 8 in / 13.72 m
Machine Weight:
14150 lb / 6418.33 kg
- Improved multifunction capability increases productivity
- More durability and serviceability thanks to the new DuraTough hood design
- Larger capacity at 550 lb
