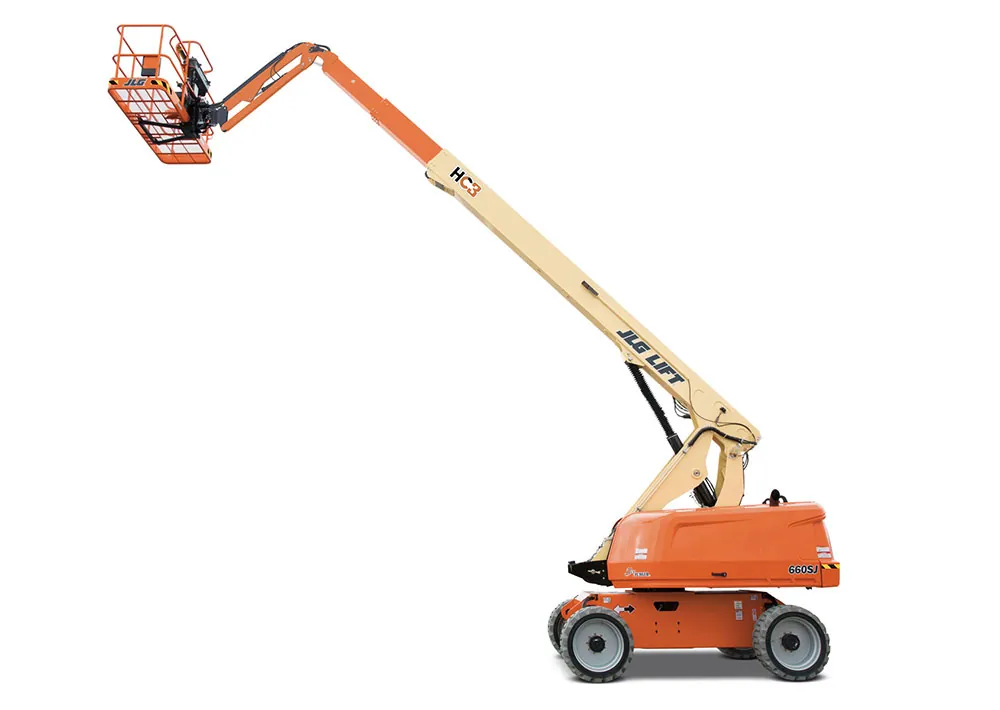

JLG 660SJ HC3 Boom Lift
Details
The JLG 660SJ HC3 boom lift combines performance, reliability, and high-capacity lifting for demanding jobsites. Operators can handle heavier loads, reach overhead work areas more effectively, and maintain productivity across a wide range of applications.
Key Specs
- Platform Height: 65 ft 8 in. / 20.02 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 660 lb / 299.37 kg
- Horizontal Outreach: 57 ft 1 in. / 17.4 m
Key Features
- More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform
- Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine
- Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Capacity – Fuel Tank:
31 gal. / 117.35 L
Engine Type – Diesel:
Deutz D2.9L4 Tier 4 Final 48.8hp (36.4kw)
Engine Type – Dual Fuel:
Ford MSG425-DF 84hp (62kw)
Drive Speed – 4WD:
3.8 mph / 6.12 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Restricted:
1000 lb / 453.59 kg
Platform Capacity – Restricted 2:
750 lb / 340.19 kg
Platform Capacity – Unrestricted:
660 lb / 299.37 kg
Swing:
360 Degrees
Turning Radius – Outside (2WS):
17 ft 7 in. / 5.36 m
Machine Height:
8 ft 2 in. / 2.5 m
Machine Length:
35 ft 5 in. / 10.79 m
Machine Width:
8 ft 2 in. / 2.49 m
Platform Dimension A:
3 ft / 0.91 m
Platform Dimension B:
8 ft / 2.44 m
Horizontal Outreach:
57 ft 1 in. / 17.4 m
Platform Height:
65 ft 8 in. / 20.02 m
Machine Weight:
29281 lb / 13281.64 kg
- More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform
- Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine
- Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
