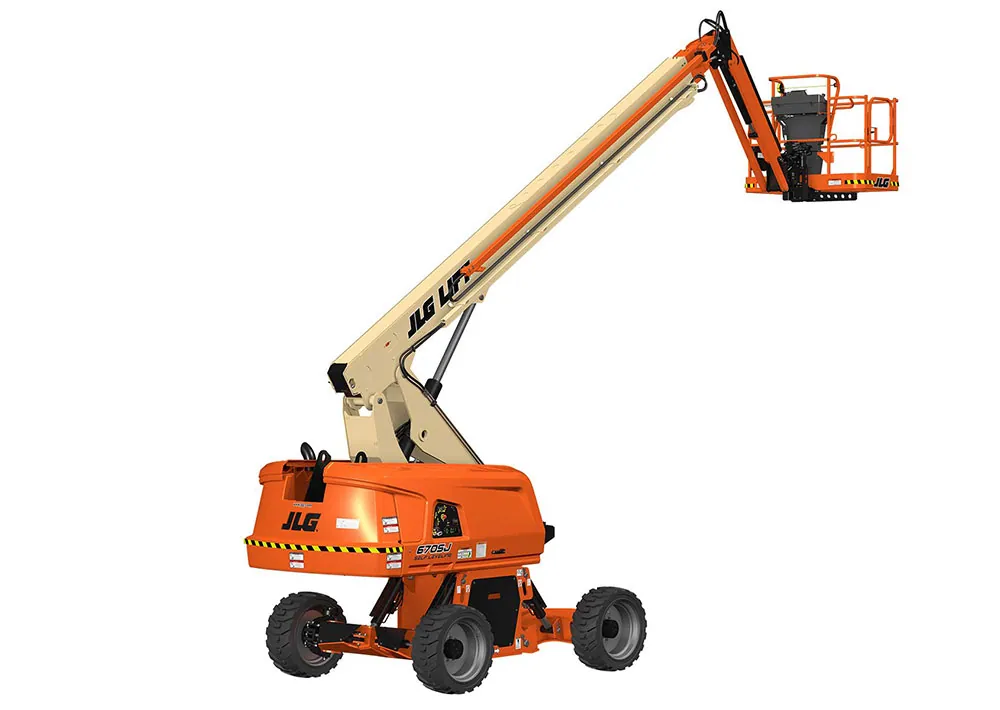

JLG 670SJ Boom Lift
Details
The JLG 670SJ boom lift features a self-leveling chassis that helps operators maintain stability and performance while working on uneven terrain. It provides the elevated access, outreach, and jobsite flexibility required for construction, industrial maintenance, and other demanding applications.
The JLG 670SJ boom lift automatically adapts to uneven terrain and supports operation on slopes up to 10 degrees while driving at full height. Its integrated self-leveling chassis helps operators position the platform closer to the work area while reducing the need for site preparation such as cribbing or grading.
Four independent control arms follow ground contours to help maintain platform stability during travel. The JLG 670SJ boom lift helps operators work more efficiently by reducing repositioning, improving platform control, and supporting safer operation across challenging jobsites.
Key Specs
- Platform Height: 66 ft 10 in. / 20.36 m
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Horizontal Outreach: 57 ft 1 in. / 17.4 m
Key Features
- Eliminates Prep Work: With self-leveling technology, there’s no need for cribbing or grading the job site
- Reduces Repositioning: Get into position quicker with the ability to work on slopes up to 10 degrees and drive at height with full functionality
- Maximizes Your Work Envelope: Instead of using a larger machine to reach over uneven terrain, navigate uneven surfaces to get right to the work area
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Capacity – Fuel Tank:
31 gal. / 117.35 L
Engine Type – Diesel:
Deutz TD2.9L4 DSL Tier 4 Final
Drive Speed – 4WD:
3.8 mph / 6.12 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Restricted:
750 lb / 340.19 kg
Platform Capacity – Unrestricted:
550 lb / 249.48 kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside (2WS):
18 ft 8 in. / 5.68 m
Machine Height:
9 ft 1 in. / 2.77 m
Machine Length:
35 ft 1 in. / 10.68 m
Machine Width:
8 ft 2 in. / 2.49 m
Platform Dimension A:
3 ft / 0.91 m
Platform Dimension B:
8 ft / 2.44 m
Horizontal Outreach:
57 ft 1 in. / 17.4 m
Platform Height:
66 ft 10 in. / 20.36 m
Machine Weight:
25341 lb / 11494.48 kg
- Eliminates Prep Work: With self-leveling technology, there’s no need for cribbing or grading the job site
- Reduces Repositioning: Get into position quicker with the ability to work on slopes up to 10 degrees and drive at height with full functionality
- Maximizes Your Work Envelope: Instead of using a larger machine to reach over uneven terrain, navigate uneven surfaces to get right to the work area
- Increases Operator Confidence: With less bouncing around in the platform, operators will feel less fatigued and less distracted by tools shifting while they drive
- Delivers Onboard Technology: This boom lift is loaded with tech, including a fully integrated, advanced control system, LCD displays and a load-sensing system with a single-sensor, zero-load calibration design
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Details
The JLG 670SJ boom lift features a self-leveling chassis that helps operators maintain stability and performance while working on uneven terrain. It provides the elevated access, outreach, and jobsite flexibility required for construction, industrial maintenance, and other demanding applications.
The JLG 670SJ boom lift automatically adapts to uneven terrain and supports operation on slopes up to 10 degrees while driving at full height. Its integrated self-leveling chassis helps operators position the platform closer to the work area while reducing the need for site preparation such as cribbing or grading.
Four independent control arms follow ground contours to help maintain platform stability during travel. The JLG 670SJ boom lift helps operators work more efficiently by reducing repositioning, improving platform control, and supporting safer operation across challenging jobsites.
Key Specs
- Platform Height: 66 ft 10 in. / 20.36 m
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Horizontal Outreach: 57 ft 1 in. / 17.4 m
Key Features
- Eliminates Prep Work: With self-leveling technology, there’s no need for cribbing or grading the job site
- Reduces Repositioning: Get into position quicker with the ability to work on slopes up to 10 degrees and drive at height with full functionality
- Maximizes Your Work Envelope: Instead of using a larger machine to reach over uneven terrain, navigate uneven surfaces to get right to the work area
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
