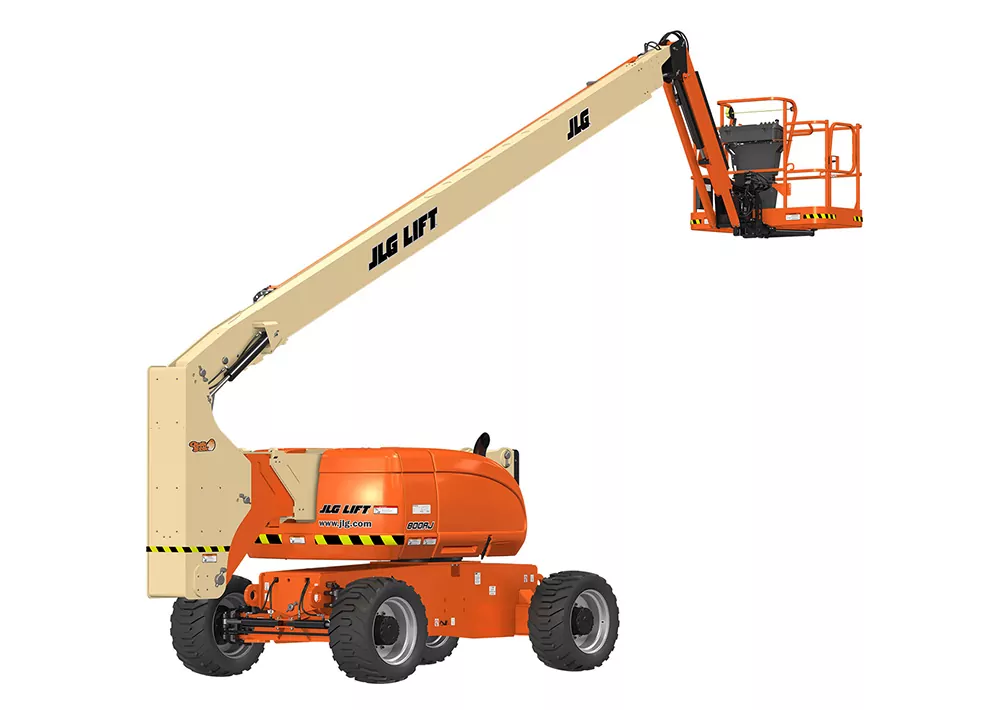

JLG 800AJ Boom Lift
Details
The JLG® 800AJ boom lift delivers the reach, versatility, and performance required to work over and around obstacles on demanding jobsites. Exceptional outreach, high capacity, and a large working envelope help operators access hard-to-reach areas while maintaining productivity throughout the workday.
Designed for both rough-terrain and general jobsite applications, the JLG 800AJ helps operators reach working height quickly with the QuikStik boom system. Up to 32 feet of up-and-over reach and 53 feet of outreach provide access to challenging work areas, while the Hi-Capacity model offers three capacity zones rated for three occupants and tools.
Key Specs
- Platform Height: 80 ft / 24.38 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 51 ft 10 in. / 15.8 m
Key Features
- Get the extra reach and versatility you need with the best reach envelope in the industry
- With Workstation in the Skyä accessories, you will have all you need to get the job done
- Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
39 gal. / 147.63 L
Engine Type – Diesel:
DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type – Dual Fuel:
Ford MSG425 84hp
Axle Oscillation:
8 in. / 0.2 m
Drive Speed – 2WD:
3 mph / 4.83 km/h
Drive Speed – 4WD:
3 mph / 4.83 km/h
Grade-ability – 2WD:
30 %
Grade-ability – 4WD:
45 %
Platform Capacity – Unrestricted:
500 lb / 226.80 kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside (2WS):
19 ft 8 in. / 5.99 m
Turning Radius – Outside (4WS):
11 ft 7 in. / 3.53 m
Jib – Range of Articulation:
130 Degrees
Ground Clearance:
11 in / 0.28 m
Horizontal Jib Rotation:
0 Degrees
Horizontal Outreach:
51 ft 10 in. / 15.8 m
Platform Height:
80 ft / 24.38 m
Up and Over Height:
32 ft 1 in. / 9.78 m
Machine Weight:
34738 lb / 15756.89 kg
- Get the extra reach and versatility you need with the best reach envelope in the industry
- With Workstation in the Sky® accessories, you will have all you need to get the job done
- Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
