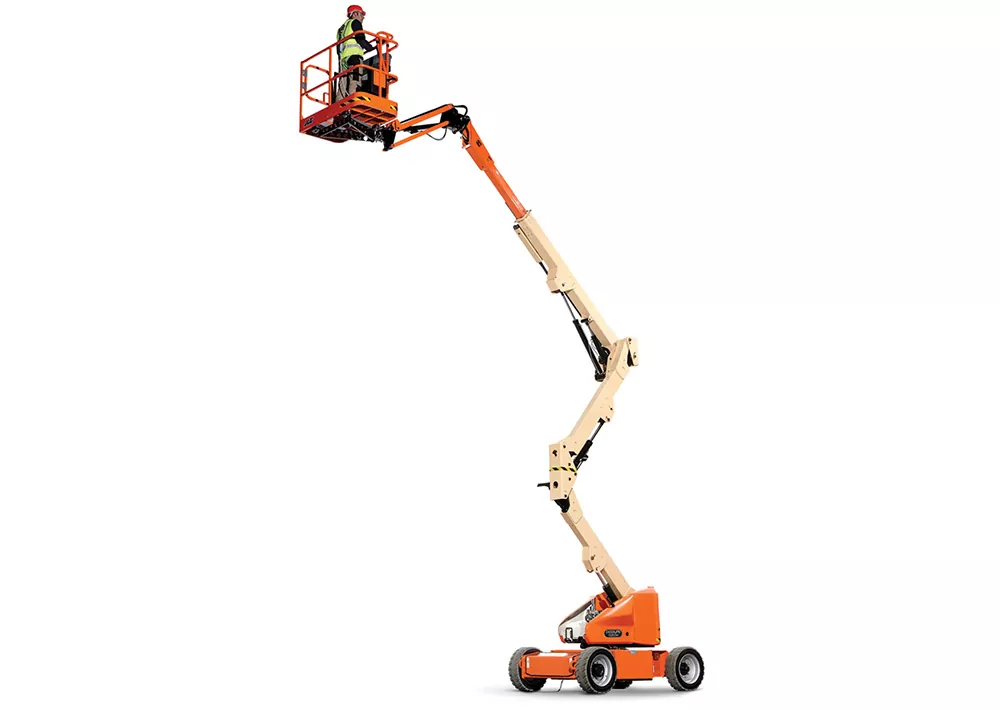

JLG E400AJPN Boom Lift
Details
Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring “green” building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.
The E400 Series is environmentally friendly with industry-leading performance. You get the up and over access you need and multiple function operation for efficient maneuvering in tight spaces.
Key Specs
- Platform Height: 40 ft / 12.19 m
- Machine Width: 4 ft 11 in. / 1.5 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
- Also available – E400AN model
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Batteries:
8 x 6V, 305 A-h
Electrical System:
48 Volts DC
Drive Speed – Platform Lowered:
3 mph / 4.83 km/h
Grade-ability – 2WD:
30%
Platform Capacity:
500 lb / 226.80 kg
Platform Capacity – Unrestricted:
500 lb / 226.80 kg
Swing:
350 Degrees
Swing Type:
Non-Continuous
Turning Radius – Outside:
10 ft 4 in. / 3.15 m
Jib – Range of Articulation:
144 Degrees
Ground Clearance:
5 in. / 0.13 m
Horizontal Jib Rotation:
180 Degrees
Horizontal Outreach:
22 ft 5 in. / 6.83 m
Platform Height:
40 ft / 12.19 m
Up and Over Height:
21 ft 6 in. / 6.55 m
Machine Weight:
14900 lb / 6758.53 kg
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
- Also available – E400AN model
