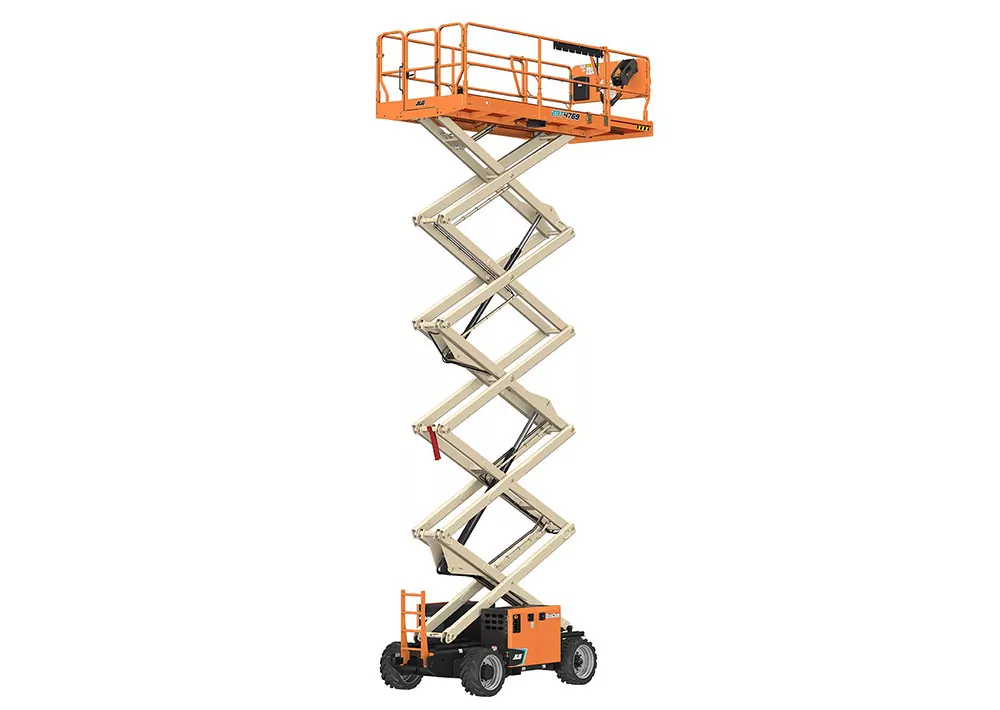

JLG ERT4769 Scissor Lift
Details
Our JLG ERT4769 electric powered rough terrain scissor lifts are capable of driving at full height, ensuring that these scissor lifts are able to handle any application.
Key Specs
- Platform Height: 47 ft / 14.33 m
- Platform Capacity: 800 lb / 362.87 kg
- Machine Width: 5 ft 9 in. / 1.76 m
- Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
Key Features
- Reach More with One Machine: This model is the tallest machine in its class, providing access to five-story heights
- Limit Trips Up and Down: Electric powered rough terrain models offer drive capability at full height
- Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Generator (Brand / HP / Fuel Type):
Kubota Stage V OC60-E4 / 6hp (4.5kW)
Machine Weight:
15200 lb / 6894.60 kg
Drive Speed – Platform Elevated:
0.3 mph / 0.48 km/h
Drive Speed – Platform Lowered:
3 mph / 4.83 km/h
Grade-ability – 2WD:
35 %
Lift Time:
76 sec.
Lower Time:
60 sec.
Platform Capacity:
800 lb / 362.87 kg
Platform Capacity – Extension:
300 lb / 136.08 kg
Turning Radius – Outside:
14 ft 7 in. / 4.44 m
Machine Height:
9 ft 1 in. / 2.77 m
Machine Length:
11 ft 7 in. / 3.53 m
Machine Width:
5 ft 9 in. / 1.76 m
Platform Dimension A:
10 ft 6 in. / 3.2 m
Platform Dimension B:
4 ft 9 in. / 1.45 m
Platform Extension Length:
3 ft 6 in. / 1.07 m
Platform Height – Lowered:
5 ft 4 in. / 1.63 m
Platform Railing Height:
3 ft 9 in. / 1.14 m
Platform Height:
47 ft / 14.33 m
Working Height:
53 ft / 16.15 m
- Reach More with One Machine: This model is the tallest machine in its class, providing access to five-story heights
- Limit Trips Up and Down: Electric powered rough terrain models offer drive capability at full height
- Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job
- Use the Latest Technology: An LCD platform control box with LiftSense technology and USB charging delivers next-level, real-time productivity and service communication to the operator
- Reduce Maintenance Needs: Higher parts commonality and a maintenance-free 2WD AC drive system simplifies service across the rough terrain family
- Stay in Compliance: This ANSI A92.20 compliant lift features a load sensing system and the ability to calibrate the system without weight
