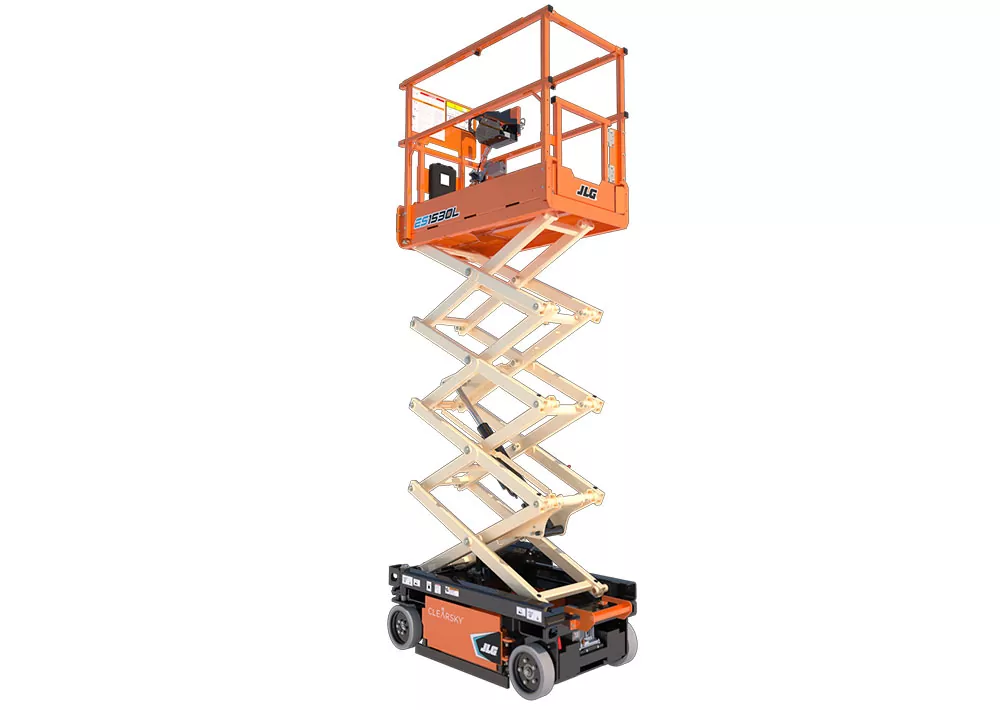

JLG ES1530L Scissor Lift
Details
Experience the benefits of reduced charging time and longer runtime with the JLG ES1530L scissor lifts. These electric slab scissors are designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions. With the latest technology built in, these JLG ES1530L electric scissor lifts deliver innovative features that boost operator confidence. Increase your productivity and enhance safety on the job when you choose an electric man lift from JLG.
Key Specs
- Platform Height: 15 ft / 4.57 m
- Platform Capacity: 500 lb / 226.80 kg
- Machine Width: 2 ft 6 in. / 0.76 m
- Drive Speed – Platform Lowered: 2.4 mph / 3.86 km/h
Key Features
- Work More Places: Lightweight for indoor work on sensitive flooring, such as data centers while also rated for outdoor applications
- Maneuver More Efficiently: Compact footprint, with industry-exclusive zero turning radius for work in tight spaces
- Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic hoses and hydraulic fittings on the entire machine mean increased uptime, as well as fewer leaks and service calls
- Meet the Newest Standards: Complies with new ANSI A92.20 specifications
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Batteries:
2 x 12V 105 amp-hr
Charger:
27 amp (Universal Algorithm)
Machine Weight (ANSI Export and CSA):
1940 lb / 879.97 kg
Drive Speed – Platform Elevated:
0.5 mph / 0.80 km/h
Drive Speed – Platform Lowered:
2.4 mph / 3.86 km/h
Drive System:
24V Electric
Grade-ability:
25 %
Lift Time:
22 sec.
Lower Time:
17 sec.
Maximum Drive Height:
15 ft / 4.57 m
Platform Capacity:
500 lb / 226.80 kg
Platform Capacity – Extension:
250 lb / 113.40 kg
Turning Radius – Inside:
0 in. / 0 m
Turning Radius – Outside:
4 ft 7 in. / 1.4 m
Ground Clearance:
2 in. / 0.06 m
Machine Height:
6 ft 3 in. / 1.9 m
Machine Length:
4 ft 8 in. / 1.43 m
Machine Width:
2 ft 6 in. / 0.76 m
Platform Extension Length:
1 ft 10 in. / 0.55 m
Platform Height – Lowered:
2 ft 7 in. / 0.79 m
Platform Railing Height:
3 ft 7 in. / 1.1 m
Platform Size:
24.4 in x 49.2 in
Platform Height:
15 ft / 4.57 m
- Work More Places: Lightweight for indoor work on sensitive flooring, such as data centers while also rated for outdoor applications
- Maneuver More Efficiently: Compact footprint, with industry-exclusive zero turning radius for work in tight spaces
- Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic hoses and hydraulic fittings on the entire machine mean increased uptime, as well as fewer leaks and service calls
- Meet the Newest Standards: Complies with new ANSI A92.20 specifications
