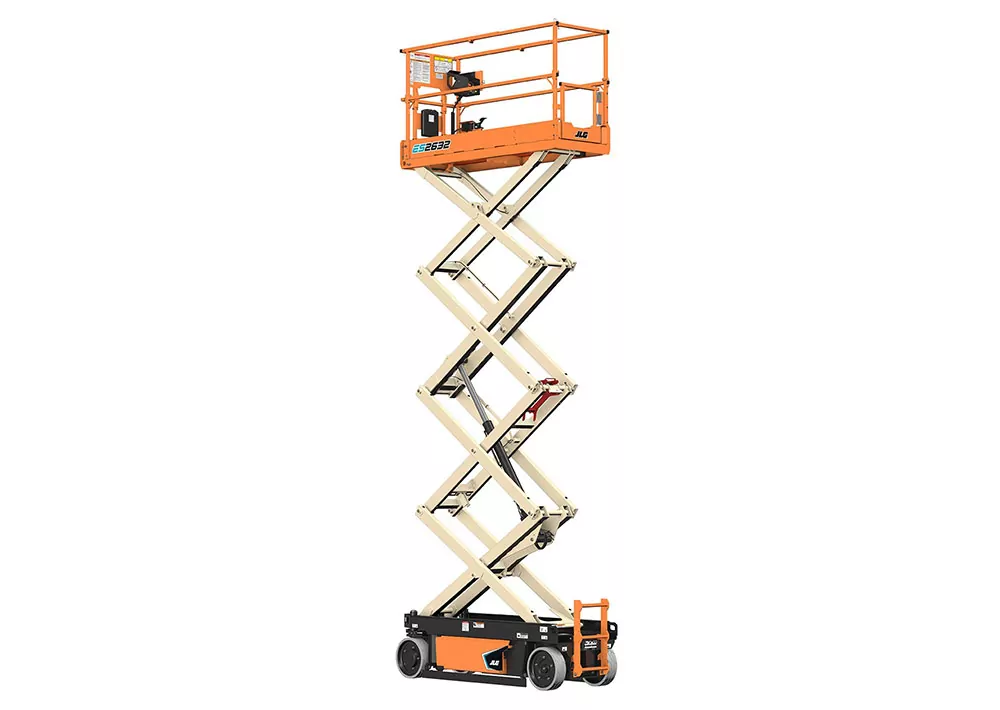

JLG ES2632 Scissor Lift
Details
Experience the benefits of reduced charging time and longer runtime with the JLG ES2632 scissor lifts. These electric slab scissors are designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions. With the latest technology built in, these JLG ES2632 electric scissor lifts deliver innovative features that boost operator confidence. Increase your productivity and enhance safety on the job when you choose an electric man lift from JLG.
Key Specs
- Platform Height: 25 ft 6 in. / 7.77 m
- Platform Capacity: 507 lb / 229.97 kg
- Machine Width: 2 ft 8 in. / 0.81 m
- Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
Key Features
- Run Longer on a Single Charge: Delivers double the battery life*
- Work in Sensitive Areas: Available CleanGuard leak containment system allows for work on sensitive flooring
- Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic components on the entire machine lower the chances for leaks and service calls to keep you on the job longer
- Increase Your Maneuverability: Narrow width fits through most standard doorways and tight aisles
*Compared to a competitive model under similar test conditions. Actual results may vary.
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Batteries:
4 x 6V 220 amp-hour
Charger:
27 amp High Frequency Charger
Machine Weight:
4400 lb / 1995.81 kg
Drive Speed – Platform Elevated:
0.5 mph / 0.80 km/h
Drive Speed – Platform Lowered:
3 mph / 4.83 km/h
Drive System:
24V DC
Grade-ability:
25 %
Lift Time:
46 sec.
Lower Time:
34 sec.
Maximum Drive Height:
25 ft 5 in. / 7.75 m
Platform Capacity:
507 lb / 229.97 kg
Platform Capacity – Extension:
265 lb / 120.20 kg
Platform Capacity – Indoor:
507 lb / 229.97 kg
Platform Capacity – Outdoor:
275 lb / 124.74 kg
Turning Radius – Inside:
0 in. / 0 m
Turning Radius – Outside:
7 ft 4 in. / 2.24 m
Ground Clearance:
4 in. / 0.1 m
Machine Height:
7 ft 4 in. / 2.24 m
Machine Height – Rails Folded:
5 ft 10 in. / 1.79 m
Machine Length:
7 ft 10 in. / 2.4 m
Machine Width:
2 ft 8 in. / 0.81 m
Platform Extension Length:
2 ft 10 in. / 0.86 m
Platform Height – Lowered:
3 ft 8 in. / 1.11 m
Platform Railing Height:
3 ft 8 in. / 1.11 m
Platform Size:
25.4 in x 84 in
Platform Height:
25 ft 6 in. / 7.77 m
Platform Height (Indoor):
25 ft 5 in. / 7.75 m
Platform Height (Outdoor):
21 ft / 6.40 m
Working Height:
31 ft 6 in. / 9.6 m
- Run Longer on a Single Charge: Delivers double the battery life*
- Work in Sensitive Areas: Available CleanGuard leak containment system allows for work on sensitive flooring
- Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic components on the entire machine lower the chances for leaks and service calls to keep you on the job longer
- Increase Your Maneuverability: Narrow width fits through most standard doorways and tight aisles
*Compared to a competitive model under similar test conditions. Actual results may vary.
