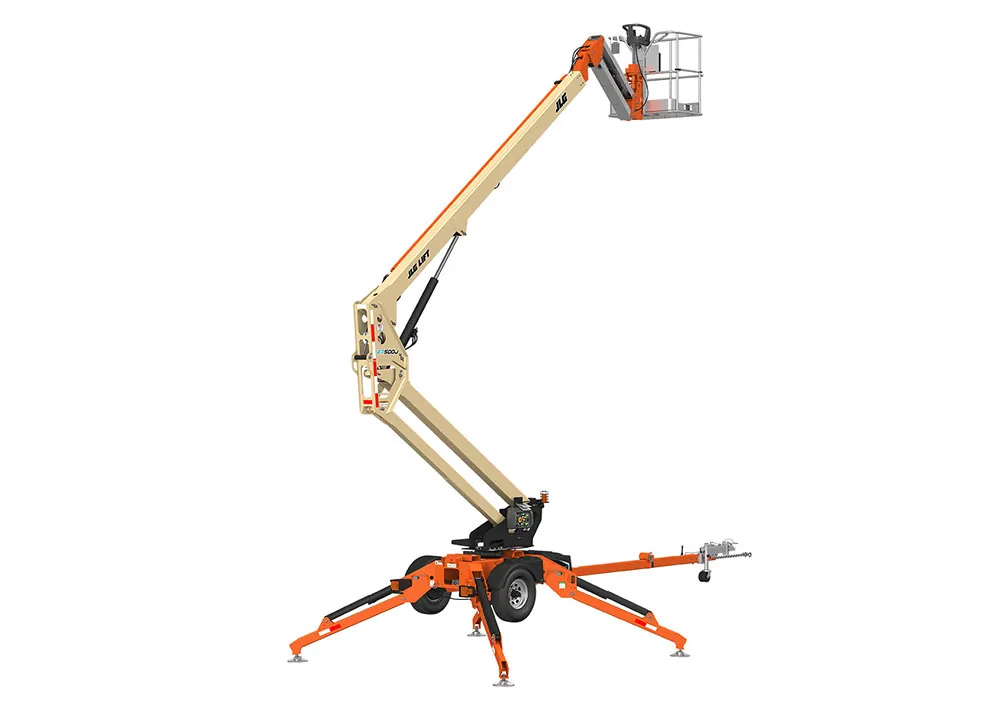

JLG ET500J Boom Lift
Details
The Tow-Pro® Series – JLG’s exclusive line of towable boom lifts – lets you tackle the same jobs as other JLG electric or gas-powered boom lifts, but with an easier option for transportation. With the standard combination hitch, industry-leading 65 mph towing speed and hydraulic auto-leveling outriggers, you can have this extremely portable lift brought to the job site and working in no time.
Whether you need it for tree trimming, decorating, construction, exterior painting or maintenance tasks, a JLG ET500J Tow-Pro tow behind lift can meet your everyday needs. A tow behind manlift from JLG has standard air and water lines to the platform, while its detachable platform controls provide faster, more efficient boom positioning with one-hand operation of all boom functions. Plus, the accessory mounting tray on a tow behind lift accommodates a generator, air compressor or pressure washer for even more flexibility.
Key Specs
- Horizontal Outreach: 31 ft 6 in. / 9.6 m
- Platform Capacity: 500 lb / 226.80 kg
- Platform Height: 50 ft 1 in. / 15.25 m
Key Features
- Peak efficiency of 4 x 6v 220 amp-hr batteries for quiet, efficient power
- Increase productivity with standard features such as air and water lines to the platform
- Set up with ease and get right to work with hydraulic, auto-leveling outriggers
- Detachable platform controls provide, more efficient boom positioning with one-hand operation of all boom functions
- New standard features include a smart charger, LED tail lights, lockable hoods, dual USB port in platform and parking brake audible indicator
- Equipment Type
- Aerial Lifts / Boom Lifts
Batteries:
4 x 6V 220 A-h
Machine Weight:
5200 lb / 2358.68 kg
Leveling Capability:
11 Degrees
Outriggers or Stabilizers:
Yes
Platform Capacity:
500 lb / 226.80 kg
Swing:
410 Degrees
Swing Type:
Non-Continuous
Towing Speed Rating:
65 mph / 104.61 km/h
Jib – Range of Articulation:
130 Degrees
Horizontal Outreach:
31 ft / 9.6 m
Platform Height:
50 ft 1 in / 15.25 m
Machine Height:
6 ft 7 in / 2 m
Machine Width:
5 ft 8 in. / 1.71 m
Machine Length:
27 ft 4 in. / 8.32 m
- Peak efficiency of 4 x 6v 220 amp-hr batteries for quiet, efficient power
- Increase productivity with standard features such as air and water lines to the platform
- Set up with ease and get right to work with hydraulic, auto-leveling outriggers
- Detachable platform controls provide, more efficient boom positioning with one-hand operation of all boom functions
- New standard features include a smart charger, LED tail lights, lockable hoods, dual USB port in platform and parking brake audible indicator
