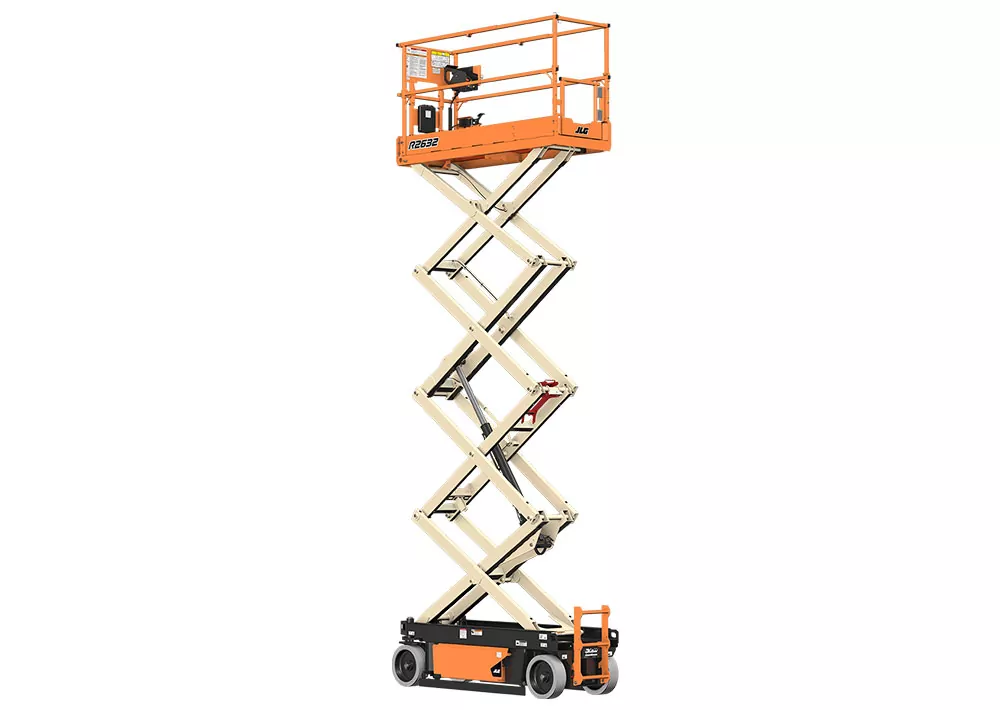

JLG R2632 Scissor Lift
Details
JLG R2632 electric scissor lifts are a rental-ready solution for all types of job sites. Offering greater affordability, reliability and serviceability, these scissor lifts have fewer parts and all-steel swing-out component trays. Their compact dimensions are ideal for confined spaces. Plus, the improved battery charger reduces guesswork by informing you on how your batteries are performing.
Key Specs
- Platform Height: 25 ft 6 in. / 7.77 m
- Machine Width: 2 ft 8 in. / 0.81 m
- Working Height: 31 ft 6 in. / 9.6 m
Key Features
- Reach More in Difficult Conditions: Industry-exclusive outdoor rating for use up to 21 ft
- Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
- Meet the Highest Standards: Complies with A92.20 ANSI regulations
- Fit Through Standard Doorways: Ability to pass through single doorways gives you more access site-wide
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Batteries:
4 x 6V 220 amp-hour
Charger:
27 amp High Frequency Charger
Machine Weight:
4280 lb / 1941.38 kg
Drive Speed – Platform Elevated:
0.5 mph / 0.80 km/h
Drive Speed – Platform Lowered:
2.2 mph / 3.54 km/h
Drive System:
Hydraulic Front-Wheel
Grade-ability:
25 %
Lift Time:
46 sec.
Lower Time:
34 sec.
Maximum Drive Height:
21 ft / 6.4 m
Platform Capacity:
507 lb / 229.97 kg
Platform Capacity – Extension:
265 lb / 120.20 kg
Platform Capacity – Indoor:
507 lb / 229.97 kg
Platform Capacity – Outdoor:
275 lb / 124.74 kg
Turning Radius – Inside:
0 in. / 0 m
Turning Radius – Outside:
7 ft 4 in. / 2.24 m
Ground Clearance:
4 in. / 0.1 m
Machine Height:
7 ft 4 in. / 2.24 m
Machine Height – Rails Folded:
5 ft 10 in. / 1.79 m
Machine Length:
7 ft 10 in. / 2.4 m
Machine Width:
2 ft 8 in. / 0.81 m
Platform Extension Length:
2 ft 10 in. / 0.86 m
Platform Height – Lowered:
3 ft 8 in. / 1.11 m
Platform Railing Height:
3 ft 8 in. / 1.11 m
Platform Size:
25.4 in x 84 in
Platform Height:
25 ft 6 in. / 7.77 m
Platform Height (Indoor):
25.6 ft / 7.80 m
Platform Height (Outdoor):
21 ft / 6.40 m
Working Height:
31 ft 6 in. / 9.6 m
- Reach More in Difficult Conditions: Industry-exclusive outdoor rating for use up to 21 ft
- Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
- Meet the Highest Standards: Complies with A92.20 ANSI regulations
- Fit Through Standard Doorways: Ability to pass through single doorways gives you more access site-wide
