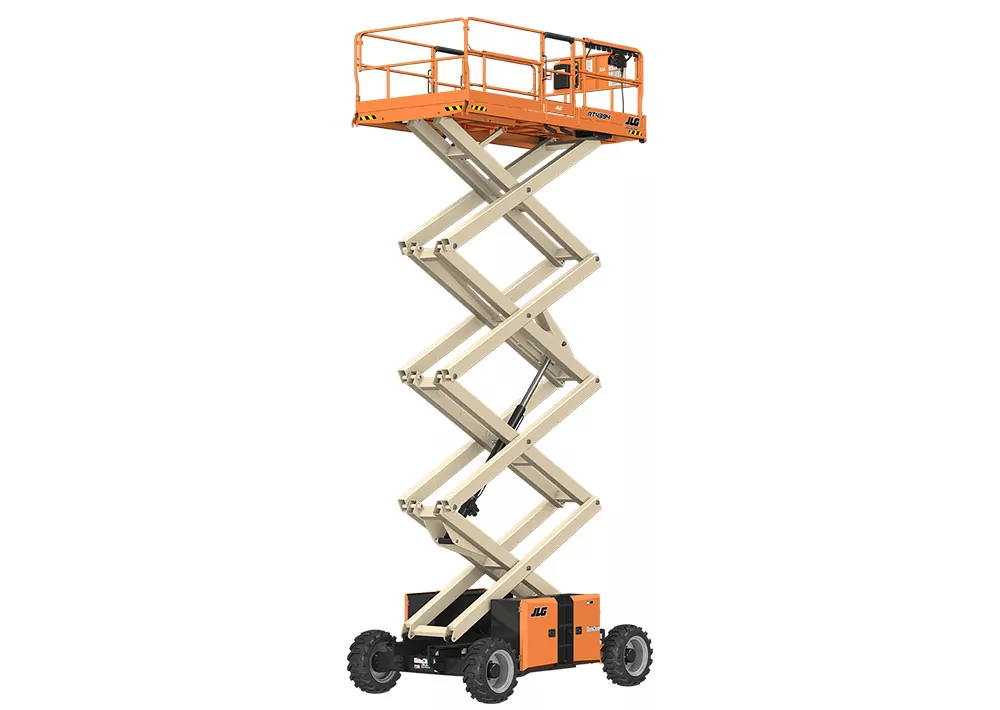

JLG RT4394 Scissor Lift

Engine Type – Diesel:
Kubota 1.26L, 24.8HP

Engine Type – Dual Fuel:
Kubota 1.26L, 24.8HP

Capacity – Fuel Tank:
30 gal. / 113.56 L

Machine Weight:
15210 lb / 6899.14 kg

Drive Speed – Platform Elevated:
0.5 mph / 0.80 km/h

Drive Speed – Platform Lowered:
3.5 mph / 5.63 km/h

Grade-ability – 2WD:
45 %

Lift Time:
45 sec.

Lower Time:
49 sec.

Platform Capacity:
1500 lb / 680.39 kg

Platform Capacity – Extension:
1250 lb / 566.99 kg

Turning Radius – Inside:
8 ft 11 in. / 2.71 m

Turning Radius – Outside:
19 ft 6 in. / 5.93 m

Machine Height:
9 ft 10 in. / 3 m

Machine Height – Rails Folded:
6 ft 10 in. / 2.08 m

Machine Length:
12 ft 10 in. / 3.91 m

Machine Width:
7 ft 9 in. / 2.36 m

Platform Dimension A:
5 ft 11 in. / 1.79 m

Platform Dimension B:
12 ft 6 in. / 3.8 m

Platform Extension Length:
4 ft / 1.22 m

Platform Height – Lowered:
6 ft 1 in. / 1.84 m

Platform Railing Height:
3 ft 8 in. / 1.1 m

Platform Height:
43 ft / 13.11 m

Working Height:
49 ft / 14.94 m
