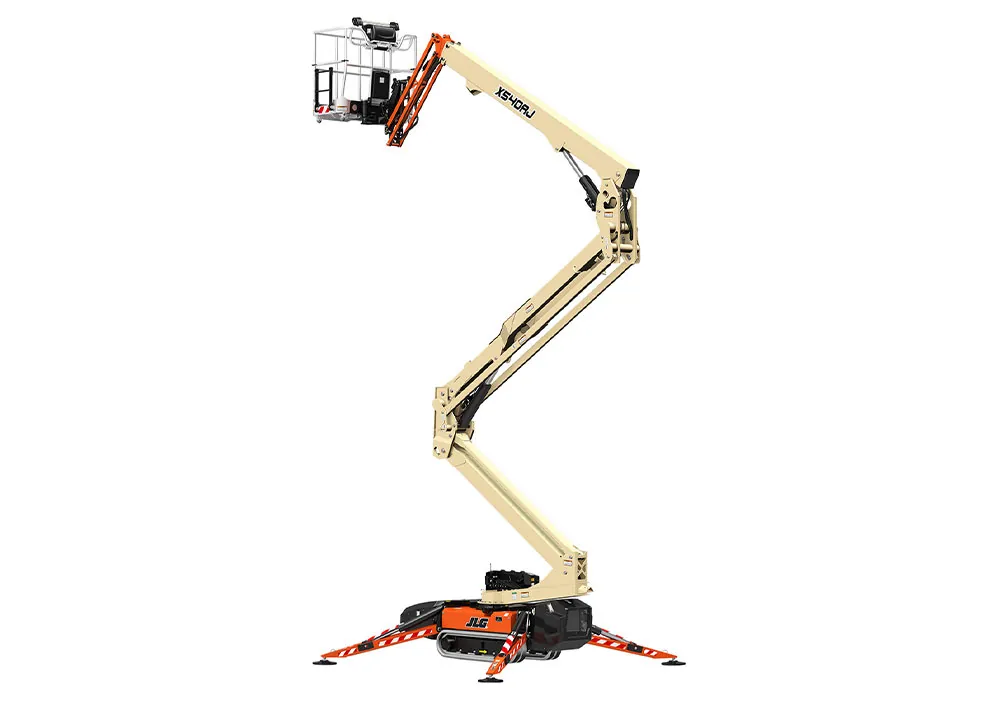

JLG X540AJ Boom Lift
Details
JLG X540AJ Compact Crawler boom lifts feature low weight and rubber tracks that allow you to go more places around the job site. These lifts climb slopes with ease thanks to their tracked wheel carriage, and their narrow chassis allows for access through gates, yards, standard doorways and public buildings. This makes a JLG X540AJ Compact Crawler lift ideal for various jobs both indoors and out.
Key Specs
- Machine Width: 2 ft 7 in. / 0.79 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Provides an 500-lb unrestricted platform capacity with SkyGuard SkyLine™ standard.
- Environmentally friendly with standard AC powered boom functions with diesel, optional bi-energy or optional lithium-ion electrical system for emission-free operation.
- Access tight spaces and climb slopes with ease thanks to a narrow chassis and tracked wheel carriage.
- Transport with ease by a forklift or crane with forklift pockets and lifting points, and fits through standard doorway.
- Equipment Type
- Aerial Lifts / Boom Lifts
Engine Type – Diesel:
Kubota Diesel 14.5 hp
Engine Type – Electric:
Lithium-ion 64 V / 120 Ah
Fuel Tank Capacity – Diesel:
4 gal. / 15.14 L
Grade-ability:
28 %
Jib – Range of Articulation:
-89 Degrees
Platform Capacity:
500 lb / 226.80 kg
Swing:
360 Degrees
Swing Type:
Non-Continuous
Horizontal Outreach:
24 ft / 7.32 m
Working Height:
60 ft / 18.29 m
Platform Height:
54 ft / 16.46 m
Stowed Length:
14 ft 5 in. / 4.39 m
Track Length:
4 ft 10 in. / 1.47 m
- Provides an 500-lb unrestricted platform capacity with SkyGuard SkyLine™ standard.
- Environmentally friendly with standard AC powered boom functions with diesel, optional bi-energy or optional lithium-ion electrical system for emission-free operation.
- Access tight spaces and climb slopes with ease thanks to a narrow chassis and tracked wheel carriage.
- Transport with ease by a forklift or crane with forklift pockets and lifting points, and fits through standard doorway.
