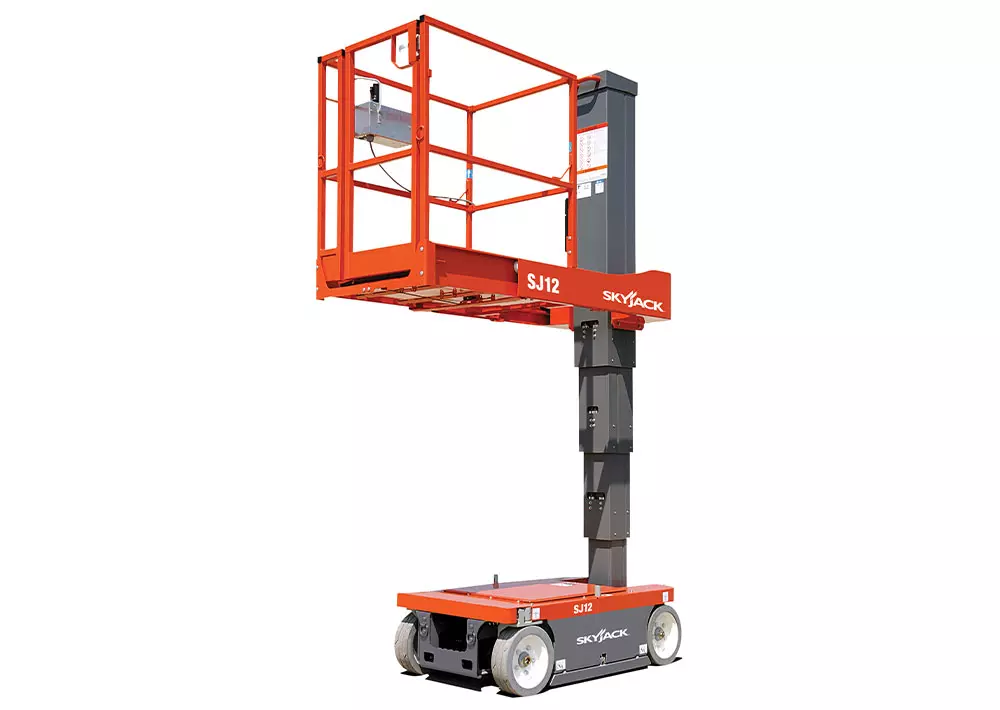

Skyjack SJ12/16 E Vertical Mast Lift
Details
Skyjack’s Next Generation SJ12/16 E Vertical Mast Lifts provide a quiet and versatile package with zero emissions and other ECO benefits. Variable speed direct AC electric drive provides exceptional duty cycles, while their proportional drive and lift controls offer superior drive efficiency and consistent torque.
ECO
Rental companies and major contractors face increasing demands for sustainability information. Skyjack has introduced its ECO mark to support our customers by providing products that deliver benefits in environmental performance and long-term sustainability.
- Equipment Type
- Aerial Lifts / New Vertical Lifts and Stock Pickers
Work Height:
SJ12: 18’ (5.48 m)
SJ16: 21’ 6” (6.55 m)
Raised Platform Height:
SJ12: 12’ (3.66 m)
SJ16: 15’ 6” (4.72 m)
Lowered Platform Height:
30” (0.76 m)
Overall Width:
30.5” (0.77 m)
Overall Length:
54” (1.37 m)
Weight:
SJ12: 2,012 lbs (913 kg)
SJ16: 2,054 lbs (931 kg)
Lift Time (With Rated Load):
SJ12: 15 sec
SJ16: 21 sec
Lower Time (With Rated Load):
SJ12: 16 sec
SJ16: 22 sec
Drive Speed (Stowed):
2 mph (3 km/h)
Drive Speed (Raised):
0.3 mph (0.5 km/h)
Maximum Drive Height:
Full Height
Capacity (Overall):
500 lbs (227 kg)
- Variable speed, front two wheel electric drive
- Overload sensing system
- Drivable at full height with platform retracted
- 90° Steering (zero inside turning radius)
- Dual holding brakes
- On-board visual interface with diagnostic capabilities
- Shroud style, impact resistant composite control box
- Proportional controls for drive & lift functions
- 16” (0.41 m) Traversing platform
- Multistage lift cylinders
- 24V DC power source
- 2 x 12V Batteries
- Low voltage battery protection
- 25% Grade-ability
- Solid rubber, non-marking tires
- Fixed pothole protection system
- 110V AC outlet at platform with GFI
- Tilt alarm with drive & lift cut-out (2.5° x 1.5°)
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Lift rings/tie downs
- Half height spring hinged entry gate
- Removable oil filter
- Forklift pockets (2.5” x 5”)
- Telematics ready
- 2 Year Gold Leaf Warranty (5 year structural warranty)
