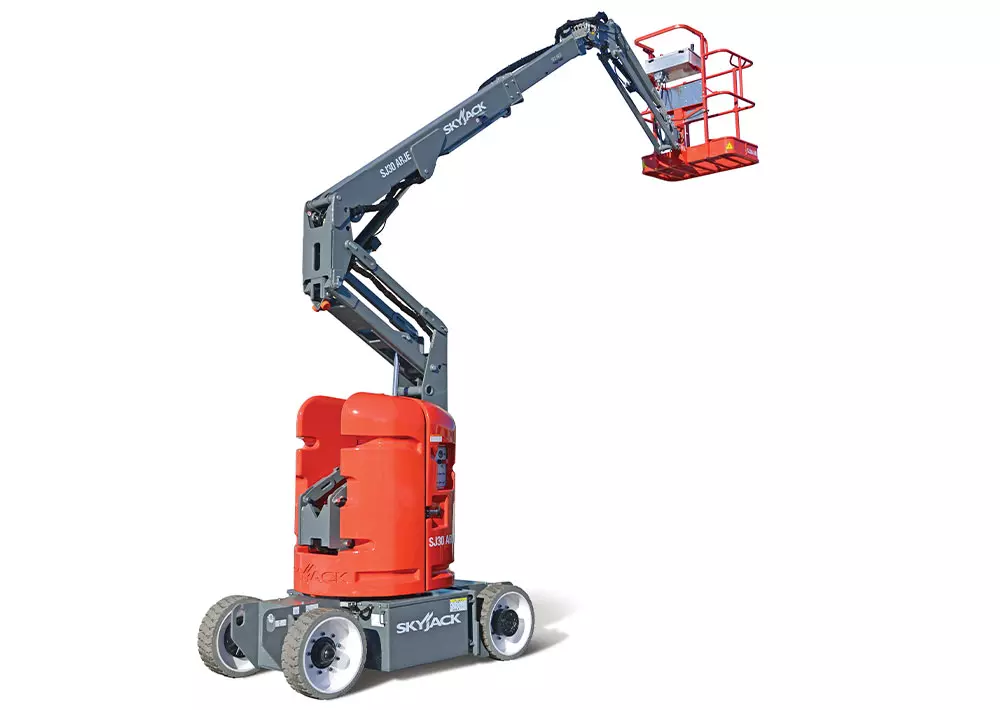

Skyjack SJ30 ARJE Boom Lift
Details
Skyjack SJ30 ARJE articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.
- Equipment Type
- Aerial Lifts / Boom Lifts
Work Height
35′ 6″ (10.82 m)
Platform Height:
29′ 6″ (9.00 m)
Up and Over Height:
13′ 1″ (3.99 m)
Platform Size:
30″ x 46″ (0.76 m x 1.17 m)
Weight:
12,320 lbs (5,588 kg)
Drive Speed (Stowed):
3.0 mph (4.8 km/h)
Drive Speed (Raised):
0.4 mph (0.64 km/h)
Capacity:
500 lbs (227 kg)
Horizontal Reach:
20′ 7″ (6.26 m)
- EASYDRIVE™ Direction sensing drive and steer controls
- SKYRISER™ True vertical rise
- Direct AC electric drive
- Speed and angle sensing traction control
- Drivable at full height
- 35% Grade-ability
- Dual spring applied, electromagnetically released brakes
- Relay based control system with SKYCODED™ color coded and numbered wiring
- 48V 305 Ah Battery pack
- Swing out battery trays
- Swing out cowlings for easy access
- Proportional controls
- Function speed selector
- 30” x 46” Platform
- Bolt-in platform railing system
- Lanyard attachment points
- Rear-entry sliding mid rail
- Secondary Guarding Electrical (SGE)
- Overload sensing system
- 110V AC Outlet on platform with GFI
- Tilt alarm (3.0° x 2.0°) with drive and lift cut-out
- Powered emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- 355° Non-continuous turret rotation
- Tie down / lifting lugs
- 22 x 7 x 12 Solid rubber, non-marking tires
- Telematics ready
- 2-Year Gold Leaf Warranty (5-year structural warranty)
