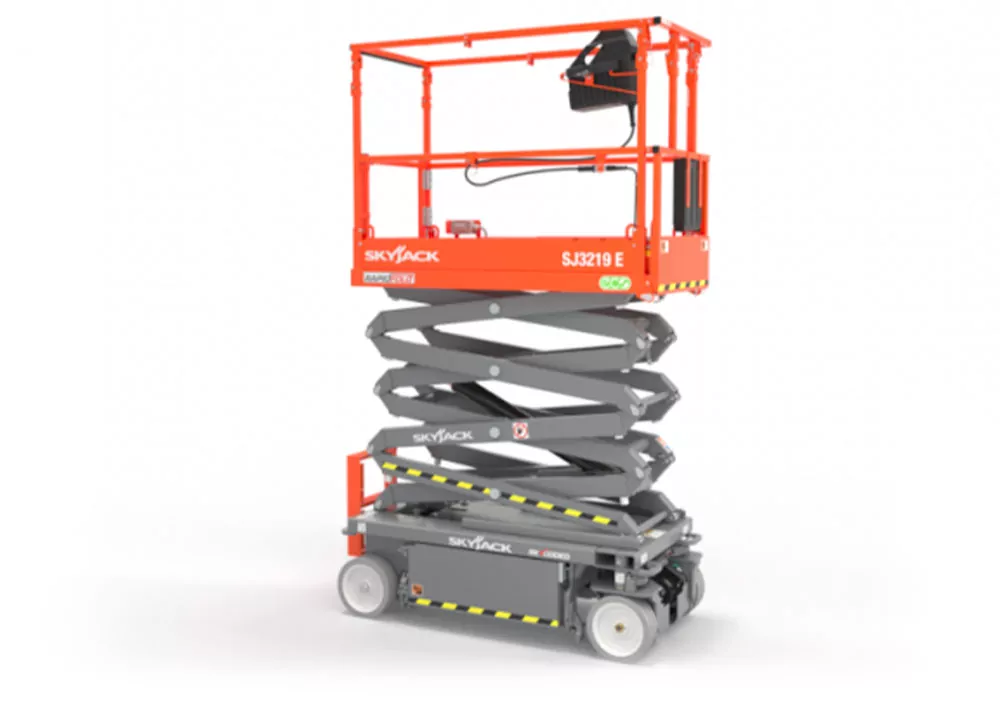

Skyjack SJ3215/19 E Scissor Lift
Details
Get more done for less with Skyjack‘s SJ3215/19 E scissor lifts. Longer run time per charge and fewer lifetime charge cycles means less spend on batteries. Consistent power, traction and torque, with improved controllability and efficiency, deliver excellent all around jobsite performance.
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Work Height:
SJ3215: 20’ 7” (6.27 m)
SJ3219: 24’ 6” (7.47 m)
Raised Platform Height:
SJ3215: 14’ 7” (4.44 m)
SJ3219: 18’ 6” (5.64 m)
Lowered Platform Height:
SJ3215: 36” (0.91 m)
SJ3219: 41” (1.04 m)
Overall Width:
32” (0.81 m)
Overall Length:
71” (1.80 m)
Weight:
SJ3215: 2,515 lbs (1,141 kg)
SJ3219: 3,236 lbs (1,468 kg)
Lift Time (With Rated Load):
SJ3215: 21 sec
SJ3219: 22 sec
Lower Time (With Rated Load):
SJ3215: 28 sec
SJ3219: 25 sec
Drive Speed (Stowed):
2.1 mph (3.4 km/h)
Drive Speed (Raised):
0.6 mph (.9 km/h)
Maximum Drive Height:
Full Height
Capacity (overall):
SJ3215: 600 lbs (272 kg)
SJ3219: 500 lbs (227 kg)
- Drivable at full height
- Variable speed, dual front wheel electric drive
- 90° Steering (zero inside turning radius)
- Dual holding brakes
- SKYCODED™ Color coded and numbered wiring system
- RAPIDFOLD hinged railing system (SJ3219 only)
- On-board visual interface with diagnostic capabilities
- Shroud style, impact resistant composite control box with extended cable
- Proportional controls for drive & lift functions
- 3’ (0.91 m) Roll out extension deck
- 24V DC Power source
- Low voltage battery protection
- 25% Grade-ability
- Solid rubber, non-marking tires
- Pothole protection system
- 28 mph (12.5 m/s) Wind rating
- Tilt alarm with drive & lift cut-out (3.5° x 1.5°)
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Forklift pockets and tie down / lift lugs
- Overload sensing system
- Fold down hinged railing system (SJ3215 only)
- Half height spring hinged entry gate
- Telematics ready
- Low battery indicator light on control box
- 2-Year Gold Leaf Warranty (5-year structural warranty)
