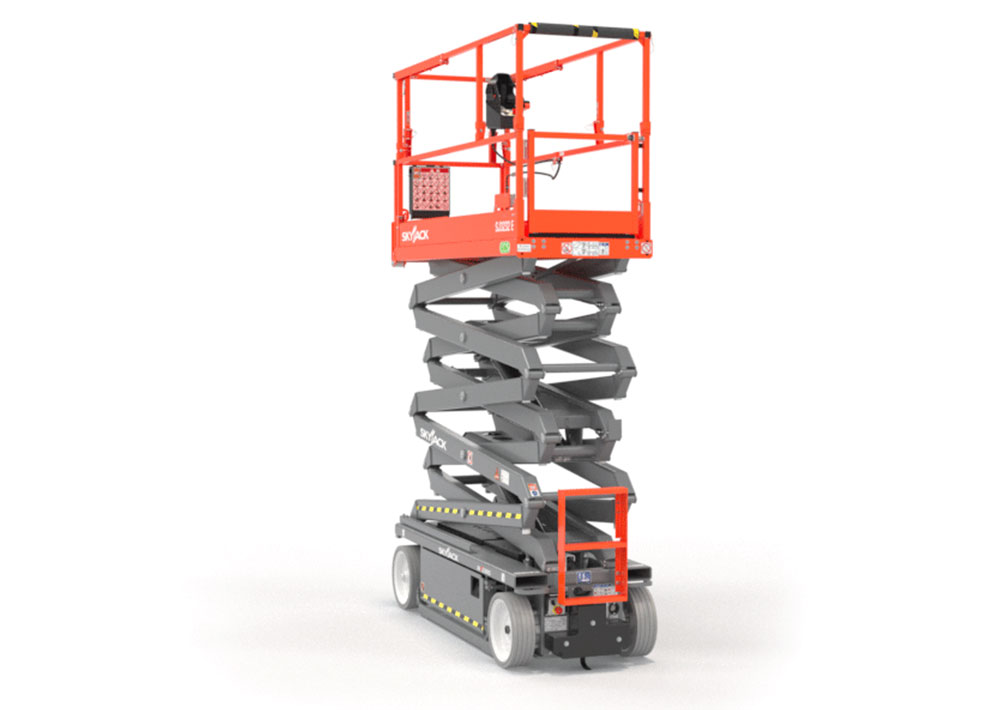

Skyjack SJ3232 E Scissor Lift

Work Height:
37′ 6″ (11.4 m)

Platform Height:
31′ 6″ (9.6 m)

Stowed Height:
79.5″ (2.02 m)

Stowed Width:
94″ (2.39 m)

Overall Width:
32” (0.81 m)

Overall Length:
91.6” (2.33 m)

Platform Width (Inside Dimension):
27.5″ (0.70 m)

Platform Length (Inside Dimension):
83″ (2.10 m)

Extension Deck (Roll Out):
3′ (0.91 m)

Ground Clearance (Stowed):
4″ (10.2 cm)

Ground Clearance (Raised):
0.5″ (1.3 cm)

Wheelbase:
69″ (1.75 m)

Grade-ability:
25%

Weight:
5,850 lbs (2,654 kg)

Lift Time (With Rated Load):
60 seconds

Lower Time (With Rated Load):
47 seconds

Drive Speed (Stowed):
2 mph (3.2 km/h)

Drive Speed (Raised):
0.5 mph (0.8 km/h)

Turning Radius (Inside):
43″ (1.09 m)

Turning Radius (Outside):
104″ (2.64 m)

Maximum Drive Height:
Full Height

Capacity (overall):
550 lbs (249 kg)

Distributed Capacity (Main Platform):
300 lbs (136 kg)

Distributed Capacity (Extension Deck):
250 lbs (113 kg)

Maximum Number of Persons:
2

Wind Rating:
1 Up to 23′ 6″ (7.1 m)

Tire Type:
Solid, N/M

Tire Size:
16 x 5 x 12
