Skyjack SJ45 AJ+ Boom Lift

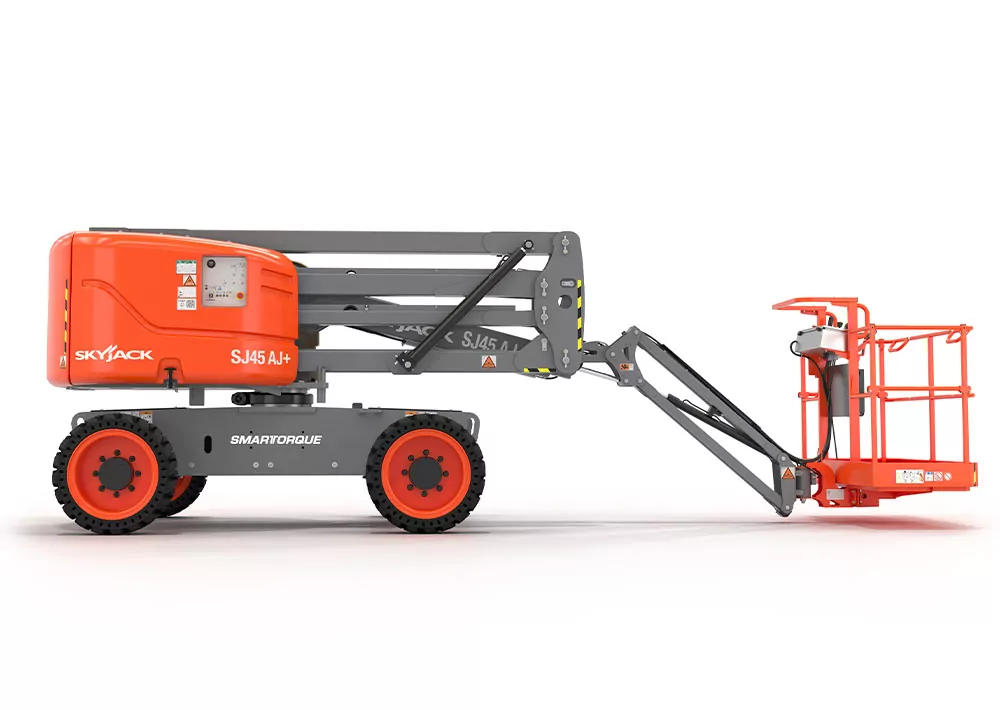

Skyjack SJ45 AJ+ articulating boom lift, stowed.

Back of Skyjack SJ45 AJ+ articulating boom lifts with raised jibs next to a rainbow.

Details

The Skyjack SJ45 AJ+ articulating booms have been redesigned to improve customer return by using SMARTORQUE^TM technology and data-driven design.

SMARTORQUE^TM utilizes optimized gearing, and a simplified, high-efficiency hydraulics package, so these models can employ 25hp engines to deliver similar on-site job performance as higher powered units.

Equipment Type: Aerial Lifts / Boom Lifts

Work Height
51’ (15.54 m)

Platform Height:
45’ (13.72 m)

Up and Over Height:
24’ 5.25” (7.45 m)

Platform Size:
30” x 72” (0.76 x 1.83 m)

Weight:
11,190 lbs (5,075 kg)

Drive Speed (High Speed):
2.5 mph (4.0 km/h)

Capacity:
660 lbs (300 kg)

Horizontal Reach:
22’ 9” (6.93 m)

Diesel Engine:
Kubota D1305 – 24.8 HP (18.5 KW)

Fuel Tank Capacity:
17 gal. (64 L)

EASYDRIVE™ Direction sensing drive and steer controls
SKYRISER™ True vertical rise
AXLDRIVE™ Axle-based 4WD system
Operator controlled locking rear differential and limited slip front differential
Oscillating steer axle
Drivable at full height
40% Grade-ability
Wet disc SAHR brakes (rear axle)
Dual module control system with SKYCODED™ color coded and numbered wiring
Kubota D1305 Tier 4F diesel engine
Swing up cowlings for easy access
Lockable power disconnect switch
Proportional controls
660 lbs Capacity
30 x 72” Platform
Bolt-in platform railing system
Lanyard attachment points
Dual-entry sliding mid rails
Secondary Guarding Electrical (SGE)
Overload sensing system
110V AC Outlet on platform with GFI
Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
Single point emergency lowering
Hourmeter
Operator horn
All motion alarm
355° Non-continuous turret rotation
Tie down/lifting lugs
Grip lug solid tires
Telematics ready
2 Year Gold Leaf Warranty (5 year structural warranty)
