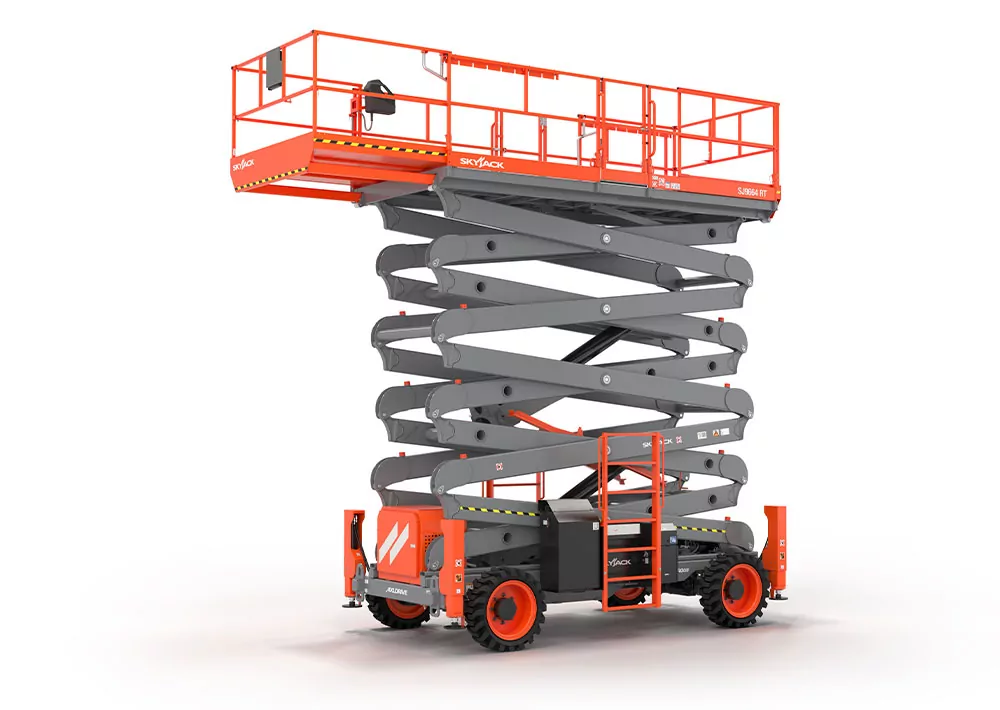

Skyjack SJ9664 RT Scissor Lift
Details
The new SJ9664 RT still boasts the features that are associated with Skyjack, including an AXLDRIVE™, commonality of parts throughout the range, and attention to accessibility for service.
It’s these core competencies that keep the cost of ownership down, and positioning Skyjack as an industry leader in all-terrain performance. Owners and operators alike will appreciate the improvements we have made on this new machine.
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Work Height:
70’ (21.34 m)
Raised Platform Height:
64’ (19.51 m)
Lowered Platform Height:
96.5” (2.45 m)
Overall Width:
96” (2.44 m)
Overall Length:
180” (4.57 m)
Weight:
21,495 lbs (9,750 kg)
Lift Time (With Rated Load):
86
Lower Time (With Rated Load):
70
Drive Speed (Stowed):
3.0 mph (4.8 km/h)
Drive Speed (Raised):
0.5 mph (0.80 km/h)
Maximum Drive Height:
30’ (9.14 m)
Capacity (Overall):
1130 lbs (513 kg)
Diesel Engine:
Kubota 24.8 HP D1305
Fuel Tank:
13 gal. (49 L)
- AXLDRIVE™ Axle-based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Drivable up to 30’ (9.14 m)
- 30% grade-ability
- Wet disc SAHR brakes (rear axle)
- SKYCODED™ Color coded and numbered wiring system
- On-board visual interface with diagnostic capabilities
- Kubota D1305 Tier 4F diesel engine
- Auto leveling outriggers
- Self-centering scissor design to support optional dual extension decks
- Lockable power disconnect switch
- Flashing light
- Proportional controls
- 1,130 lbs (513 kg) capacity
- Oversized platform with optimal clearance over side of machine
- Fold down hinged railing system
- Full height entry gates
- 5’ (1.52 m) Roll-out extension deck
- High strength and impact resistant composite control box
- Overload sensing system
- 110V AC Outlet on platform with GFI
- Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
- Single point emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- Tie down / lifting lugs
- Grip lug solid tires
- Telematics ready
- 2-Year Gold Leaf Warranty (5-year structural warranty)
