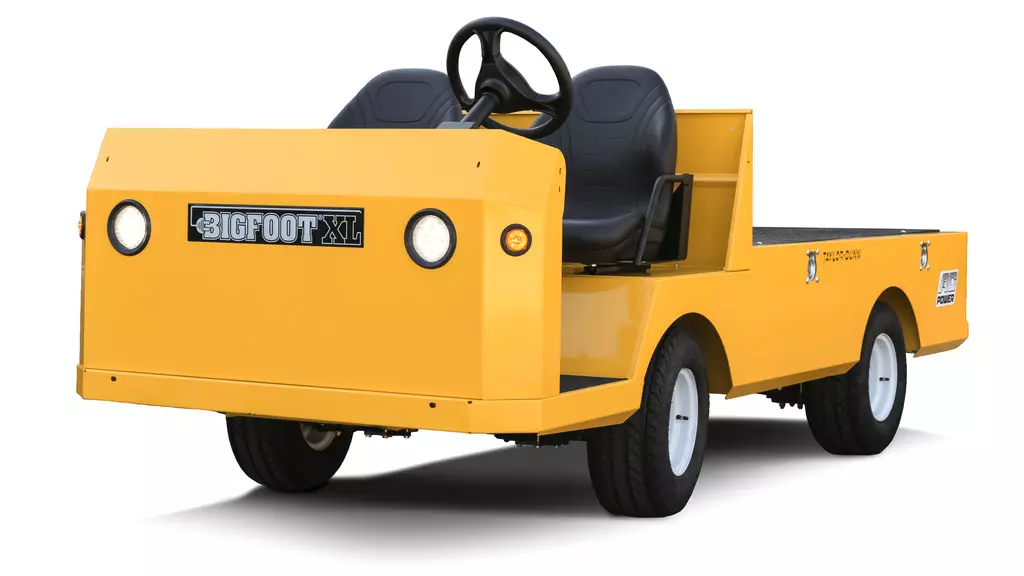

Taylor-Dunn Bigfoot® XL Burden Carrier

Engine & Drivetrain

Battery Range:
40-60 mile (64-96 km)

Drive System Type:
GT Drive

Engine Type:
48V AC Electric

Battery Power:
Lithium-Ion (6.1, 9.2, or 12.3 kWh options)

Horsepower:
17 HP

Top Speed:
18 mph (29 km/h)



Dimensions

Deck Size:
54 x 77 in. (137 x 195 cm)

Estimated Dry Weight:
1965 lb (891 kg)

Ground Clearance:
5.8 in (14.7 cm)

Hitch Towing Rating:
10,000 lb (4536 kg)

Overall Vehicle Size (L x W x H):
130.5 x 57 x 52 in. (331 x 145 x 132 cm)

Payload Capacity:
3,000 lb (1,360 kg)

Person Capacity:
2

Turning Radius:
145 in (368 cm)

Wheelbase:
62 in (158 cm)



Brakes

Front/Rear Brakes:
Hydraulic Disc Brakes, Front & Rear

Parking Brake:
Electric Parking Brake



Specifications

Adjustable Driver Seat:
Standard

Instrumentation:
Clear View Display (Speed, Distance, Battery Status Indicator, Hours, Input Diagnostic & Fault Code Display), Dual USB Port, Emergency Power Cut-off Switch, Light Switch, Forward/Off/Reverse Selector, Reverse Alarm, High/Low Speed Selector, Key Switch, DC/DC Converter (on with key switch), Electric Horn

Lighting:
Dual LED headlights, taillights and brake lights

Other Standard Features:
Bucket seats, driver’s seat electrical interlock, recessed tie-downs

Seat Covering:
Black Vinyl

Tilt Steering:
Not Equipped



Tires / Wheels

Electronic Power Steering:
Not Equipped

Front Tires:
20.5 x 8 x 10, Load Range E, Pneumatic

Rear Tires:
20.5 x 8 x 10, Load Range E, Pneumatic



Suspension

Front Suspension:
Multi-leaf springs

Rear Suspension:
Multi-leaf springs
