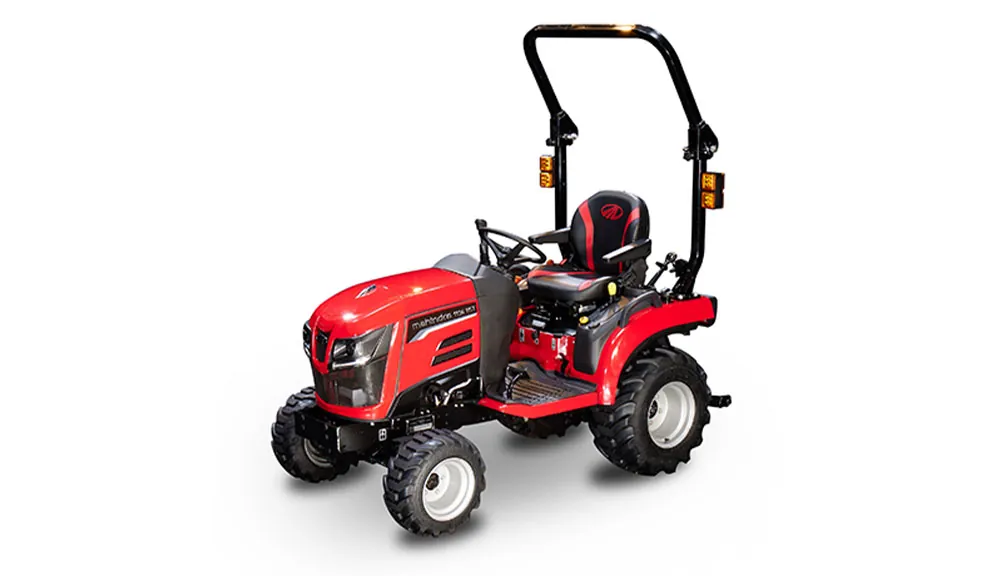

Mahindra 1120 HST Tractor

Engine Type:
Naturally Aspirated, Indirect Injection, Water Cooled Diesel

Engine HP [kW] @ RPM:
20.1 (15) @ 2900

Displacement [in3 (cc)]:
67.2 (1102)

Number of cylinders:
3

Fuel tank [Gal (L)]:
6.6 (25

Bore & stroke [in]:
Bore : 3, Stroke : 3.2

Cylinders:
Naturally Aspirated, Indirect Injection, Water Cooled Diesel

Transmission Type:
HST – 2 range

Number of Speeds:
Infinite

Clutch:
N/A

Max Speed (MPH):
7.3

Brakes:
Single Pedal

PTO Type:
Independent Wet Clutch

Rear PTO RPM:
540 @ 2837

Mid PTO RPM:
2500 @ 2837

PTO HP (kW):
14 (10.4)

Hydraulics Type:
Open center with Position Control

Maximum total flow [GPM (L/min)]:
7.6 (28.7)

Total pump output, main (GPM):
7.4

Total pump output, steering (GPM):
3.8

3-Point hitch:
Cat I

3- Point hitch lift capacity @24″ aft [lb (kg)]:
771 (350)

Battery:
12.6 V, 650 CCA

Alternator:
12V, 55A

Overall length [in (mm)]:
100.4 (2550)

Wheelbase [in (mm)]:
55.1 (1400)

Turning radius [ft (m)]:
7.2 (2.2)

Overall width [in (mm)]:
46.3 (1177)

Overall height [in (mm)]:
OS 86.6 (2200) Cab 80.5 (2044)

Minimum ground clearance [in (mm)]:
6.7 (169)

Weight [lb (kg)]:
1620 (735)

Tires – IND [Front/Rear]:
18×8.5-10 / 26×12-12

Tires – TURF [Front/Rear]:
16×7.5-10 / 24×12-12

Model number:
L11

Max lift height (in):
73.2

Loader lift capacity [lb (kg)]:
794 (360)

Digging depth (in):
3.14
