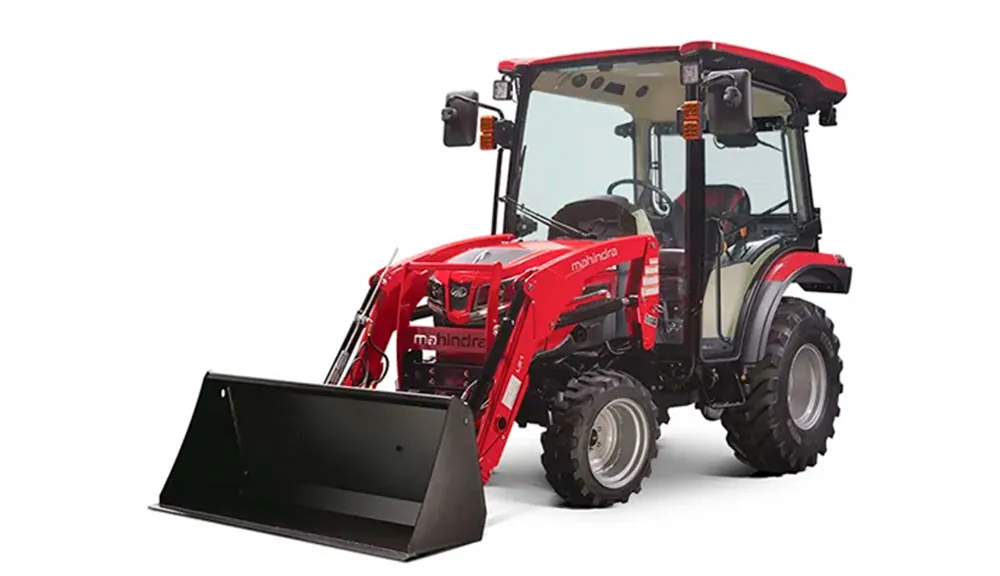

Mahindra 2123 HST Cab Tractor

Engine Type:
Naturally Aspirated, Indirect Injection, Water Cooled Diesel

Engine HP [kW] @ RPM:
25.3 (18.9) @ 2700

Displacement [in3 (cc)]:
80.4 (1318)

Number of cylinders:
3

Fuel tank [Gal (L)]:
5.8 (22)

Bore & stroke [in]:
Bore: 3.1, Stroke: 3.6

Transmission Type:
HST – 3 range

Number of Speeds:
Infinite

Clutch:
N/A

Max Speed (MPH):
11.2

Brakes:
Dual Pedal

PTO Type:
Independent

Rear PTO RPM:
540

Mid PTO RPM:
2500 @ 2500

PTO HP (kW):
18.8 (14.0)

Hydraulics Type:
Open center with Position Control

Maximum total flow [GPM (L/min)]:
11.2

Total pump output, main (GPM):
6.3

Total pump output, steering (GPM):
5

3-Point hitch:
Cat I

3- Point hitch lift capacity @24″ aft [lb (kg)]:
1760 (798 kg)

Battery:
630 CCA, 52 AH

Alternator:
55A

Overall length [in (mm)]:
112.7 (2863)

Wheelbase [in (mm)]:
61.4 (1560)

Turning radius [ft (m)]:
7.6 (2.3)

Overall width [in (mm)]:
54.4 (1383)

Overall height [in (mm)]:
95.5 (2426)

Minimum ground clearance [in (mm)]:
13.4 (340)

Weight [lb (kg)]:
2101

Tires – IND [Front/Rear]:
8.5×14 / 12.4-16

Tires – TURF [Front/Rear]:
8.5×14 / 13.5-16

Model number:
L21

Max lift height (in):
82.44

Loader lift capacity [lb (kg)]:
1477 (670)

Digging depth (in):
3.14
