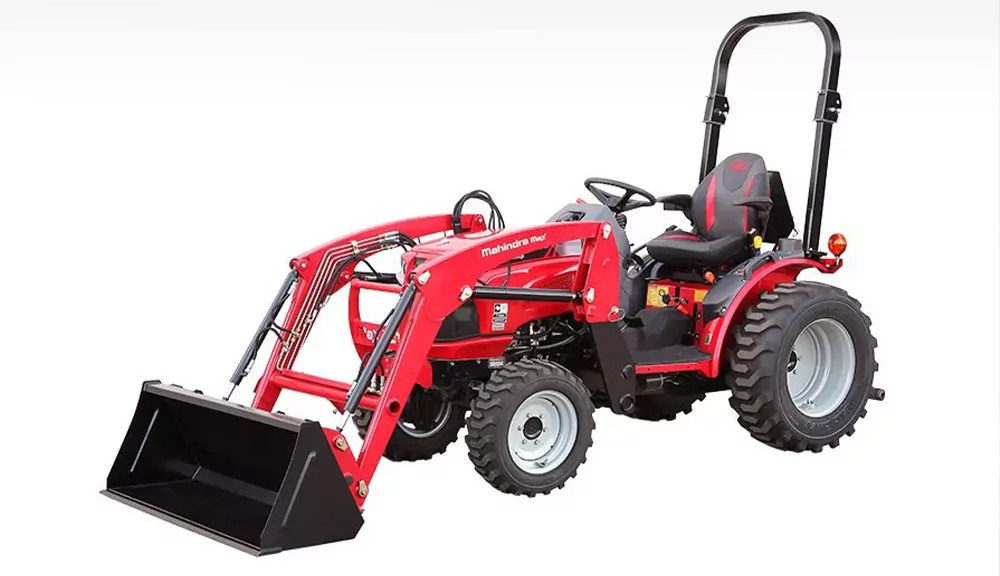

Mahindra Max 26 XLT HST Tractor
Details
With the Mahindra Max 26 XLT HST tractors, there are no compromises. These compact tractors offer ultimate versatility, combining the maneuverability and agility of smaller vehicles with the durability and lift capacity of a larger machine. Work in the tight areas other compact tractors can’t, while possessing plenty of power for large estate and municipal projects.
- Equipment Type
- Construction & Ag / Tractors
AG [Front/Rear]:
7 – 12 /9.5 – 16
Alternator:
12 V, 50 A
Battery:
12 V, 450 CCA
Brakes:
Wet Disc
Clutch:
Dry-Single
Engine HP [kW] @ RPM:
25.9 (19.3)@ 2500
Engine Type:
Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
Fuel Tank [gal (L)]:
6.1 (23)
Implement Pump Output [gpm (L/min)]:
5.8 (22.1)
IND [Front/Rear]:
23 x 8.50-12 /12-16.5
Loader Lift Capacity [lb (kg)]:
2315 (1050)
Maximum Total Flow [gpm (L/min)]:
8.5 (32.2)
Mid PTO RPM:
2000 @ 2526
Minimum Ground Clearance [in (mm)]:
11.4 (290)
Number of Cylinders:
3
Number of Speeds:
Infinite
Overall Height [in (mm)]:
84.3 (2140)
Overall Length [in (mm)]:
110 (2795)
Overall Width [in (mm)]:
54.3 (1380)
PTO HP (kW):
20.2 (15)
PTO Type:
Live
Rear PTO RPM:
540 @ 2376
Transmission:
HST – 2 ranges
TURF [Front/Rear]:
23 x 8.5-12 /33 x 12.5-15
Turning Radius [ft (m)]:
7.2 (2.1)
Type:
Open Center
Weight [lb (kg)]:
1973 (895)
Wheelbase [in (mm)]:
63.2 (1605)
- VERSATILITY: With a Max Series tractor, you’ll have a whole fleet of tools and implements available at your fingertips.
- MANEUVERABILITY: Tight landscaping conditions? No problem. Max series tractors are engineered with a best-inclass turning radius so you can maneuver with ease on your property.
- COMFORT: An easy turn seat for tractor/loader/backhoe operation, and easy on and off with an open platform, ensures that you can work long hours without unnecessary operator strain.
- STABILITY: Our premium tires offer tenacious traction, supreme stability, and safety when working in the roughest terrains. With three types of tires—ag, industrial, or turf—you’ll be ready for any job site.
- LIFT CAPACITY: All Max Series tractors possess a lift capacity that goes head to head with any other compact tractor on the market. Lift more, carry more, pull more, and get more done.
- ENGINE PERFORMANCE: Built to last and outlast. 28% lower RPM results in a smoother, quieter operation with less fuel consumption.
Key Advantages:
- Lower engine speed – less noise, wear and fuel consumption
- Larger tires than the competition
- Foldable rops with seatbelt
- Optional canopies available on open station models
- mComfort seat with foldable armrests
- Reinforced steel fenders and hood
- Power steering
- CAT 1 – 3-point hitch
- Easily install backhoe at any time
