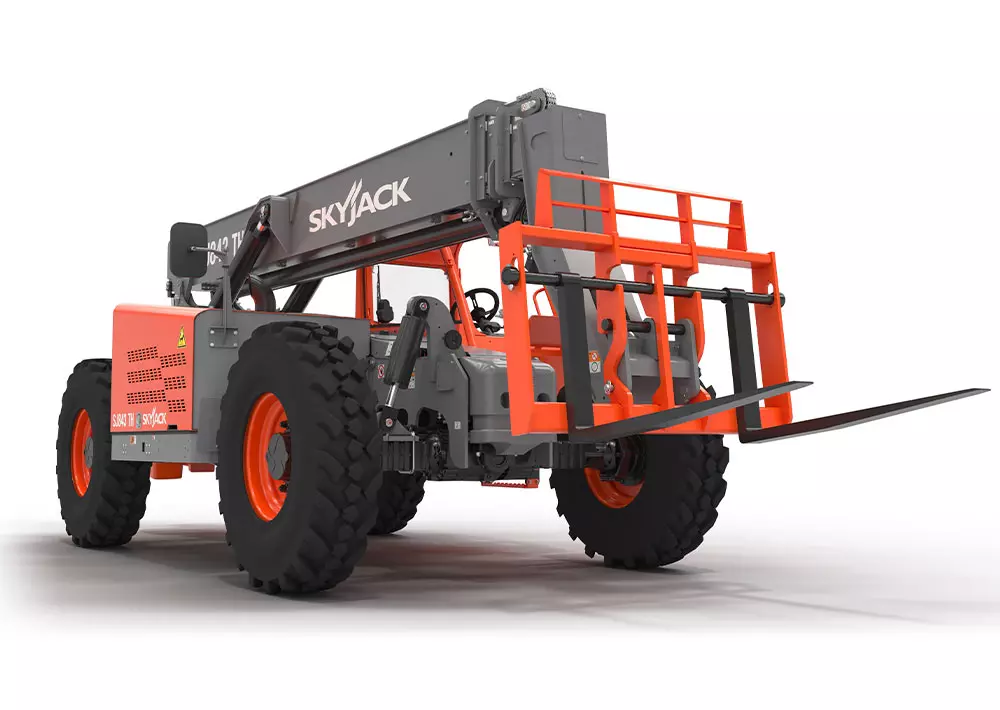

Skyjack SJ843 TH Telehandler
Details
Skyjack SJ843 TH telehandlers are designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization.
SMARTORQUE
Using an optimized balance of engine horse power, torque, and hydraulic performance, Skyjack SMARTORQUE™ products deliver the same on-site job performance as higher power units – providing excellent performance with less engine horsepower. Less emission controlling components avoids the cost associated with their complexity, as well as the time and inconvenience required in maintaining them. SMARTORQUE™ means no Diesel Particulate Filter (DPF), no Diesel Exhaust Fluid (DEF)/AdBlue, and no other active exhaust after treatment.
FLEXCAB
The SJ843 TH telehandlers feature an innovative cab design that allows fleet operators to easily convert between open and enclosed cabs with simple hand tools, providing increased flexibility for fleet movement and fast response to customer demands. Easily sourced flat glass panels with no custom curved profiles and a bolt-on/bolt-off window retention system ensures minimal downtime and incurred costs for repairing damaged glass in the field.
AXLDRIVE
An axle-based drive system with an operator controlled locking differential on the rear axle and limited slip differential on the front axle. This drive system has been proven as durable, low maintenance, and capable of navigating any job site terrain.
- Equipment Type
- Construction & Ag / Telehandler/Articulated Telescopic
Maximum Lift Capacity:
8,000 lbs (3,629 kg)
Maximum Lift Height:
43’ 4” (13.21 m)
Rated Lift Capacity @ Maximum Height:
6,000 lbs (2,722 kg)
Maximum Forward Reach:
28’ 7” (8.71m)
Rated Lift Capacity @ Maximum Reach:
1,900 lbs (862 kg)
Overall Length – Less Forks:
19’ 6” (5.94 m)
Overall Height – Stowed:
7’ 11” (2.41 m)
Overall Width:
8’ 5” (2.56 m)
Ground Clearance:
19” (48.3 cm)
Turning Radius – Outside:
147” (3.73 m)
Operating Weight:
23,006 lbs (10,435 kg)
Engine:
74 hp / 221 lb-ft Deutz TCD 2.2L T4F
Max Travel Speed – Forward:
17mph (27 km/h)
Drawbar Pull:
17,750 lbs
Transmission:
Dana Powershift, 3 speeds F/R
Axles:
Dana
Steering:
3 mode (Front Wheel, 4 Wheel, Crab)
Tires:
Foam-Filled 13 x 24 16PR Grip Lug
Fuel Tank Capacity:
35.7 gal. (142 L)
Hydraulic Reservoir:
43.85 gal. (166 L)
- Auxiliary hydraulics
- Engine block heater
- Quick attach carriage mount
- Rear window with wiper
- Side window
- Suspension seat
- Single multifunction pilot operated joystick control
- In-cab engine multifunction display
- Hydraulic test ports
- Lockable in-cab storage box
- Rear towing hitch pin
- Steel engine cowling
- Steel component and access covers
- Telematics ready
- ELEVATE Live
- 2-Year Gold Leaf Warranty (5-year structural warranty)
