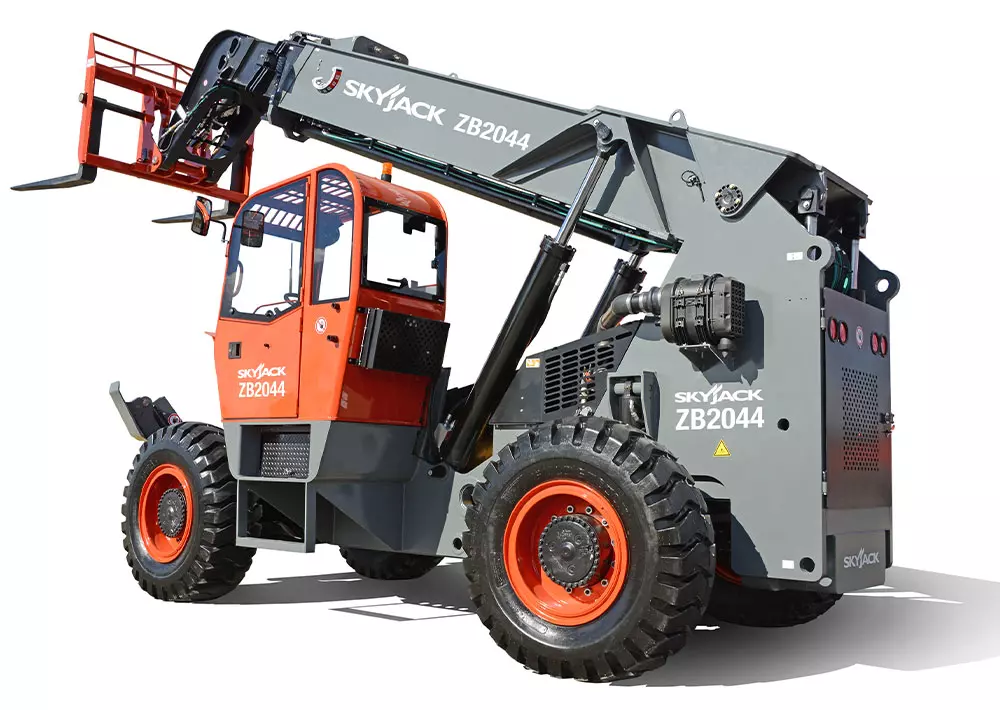

Skyjack ZB2044 Telehandler

Maximum Lift Capacity:
20,000 lbs (9,072 kg)

Maximum Lift Height:
44’ 10” (13.67 m)

Rated Lift Capacity @ Maximum Height:
10,000 lbs (4,536 kg)

Rated Lift Capacity @ Maximum Height with O/R:
12,000 lbs (5,443 kg)

Maximum Forward Reach:
27’ 5” (8.36 m)

Rated Lift Capacity @ Maximum Reach:
4,000 lbs (1,814 kg)

Rated Lift Capacity @ Maximum Reach with O/R:
7,000 lbs (3,175 kg)

Overall Length – Less Forks:
20’ 3” (6.17 m)

Overall Height – Stowed:
9’ (2.74 m)

Overall Width:
8’ 6” (2.59 m)

Ground Clearance:
18” (46 cm)

Turning Radius – Outside:
18’ 4” (5.59 m)

Operating Weight:
45,000 lbs (20,412 kg)

Engine:
168hp Cummins QSB 4.5C T4F

Max Travel Speed – Forward:
20.5 mph (33 kmh)

Transmission:
Dana powershift, 3 speed F/R

Axles:
Axletech steerable outboard planetary

Steering:
3 mode (2 wheel, 4 wheel, crab)

Tires:
Foam-Filled 17.5 x 25 16PR grip lug

Fuel Tank Capacity:
48 gal. (185 L)

Hydraulic Reservoir:
55 gal. (208 L)
