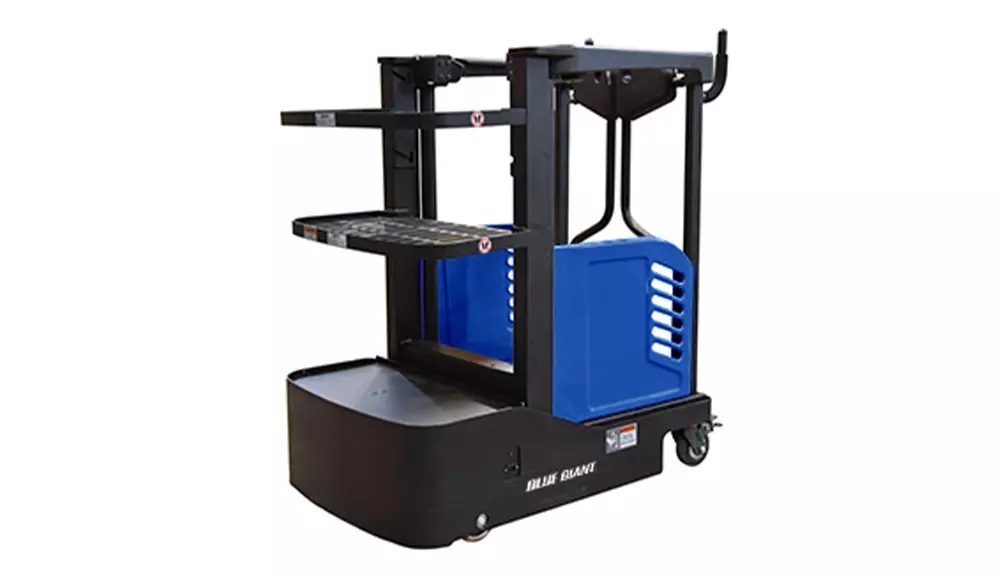

Blue Giant BG E-Step Order Picker
Details
The Blue Giant BG E-Step Semi-Electric Access Vehicle provides a safer alternative to low-level ladders for warehouse and facility tasks. Its manually propelled design and powered lift system help operators access elevated work areas efficiently. The DC lift motor and twin-post hydraulic lift system raise operators up to 42 inches while keeping them within a fully enclosed operator compartment for added confidence and safety.
The E-Step automatically deploys a floor lock when operators raise the platform, helping improve stability during elevated work. Locking rear swivel casters provide additional stability when operating on smooth surfaces. Simple, intuitive controls give operators quick access to lift and lower functions through fingertip buttons, while an emergency power disconnect enhances safety during operation.
Large polyurethane caster wheels and high-mounted rear push bars help operators move and position the E-Step easily, even when carrying a load. Two front load trays allow operators to access multiple items without repeatedly raising and lowering the platform, while the chassis-mounted load platform provides additional space for transporting materials between work areas.
- Equipment Type
- Forklifts / Order Pickers
Capacity:
100 lb (45 kg) front load trays
100 lb (45 kg) front load deck
300 lb (136 kg) operator’s compartment
Mast:
Single Stage
Operator Platform:
42″
Front Load Tray:
80.5″
Collapsed Height:
54.75″
Extended Height:
87.25″
Weight:
600lb (272 kg)
Front load tray:
(2) 28.75″x14″ (T-shaped shelves allow for 21″x18″ alternate load orientation)
Front load deck:
28.75″ x 18″(Chassis, does not elevate)
- Automatic floor lock when elevated
- Padded spring activated rear gates
- High mounted rear push bars
- Integral lithium battery
- Integral 110 VAC plug-in smart charger
- Battery discharge indicator w/hour meter
- Emergency power disconnect
- (2) Fixed front casters 5.1″ x 2.1″ poly
- (2) Swivel rear casters, 4.9″ x 1.6″ poly with foot actuated locking mechanism
- Key switch, cup holder, horn
