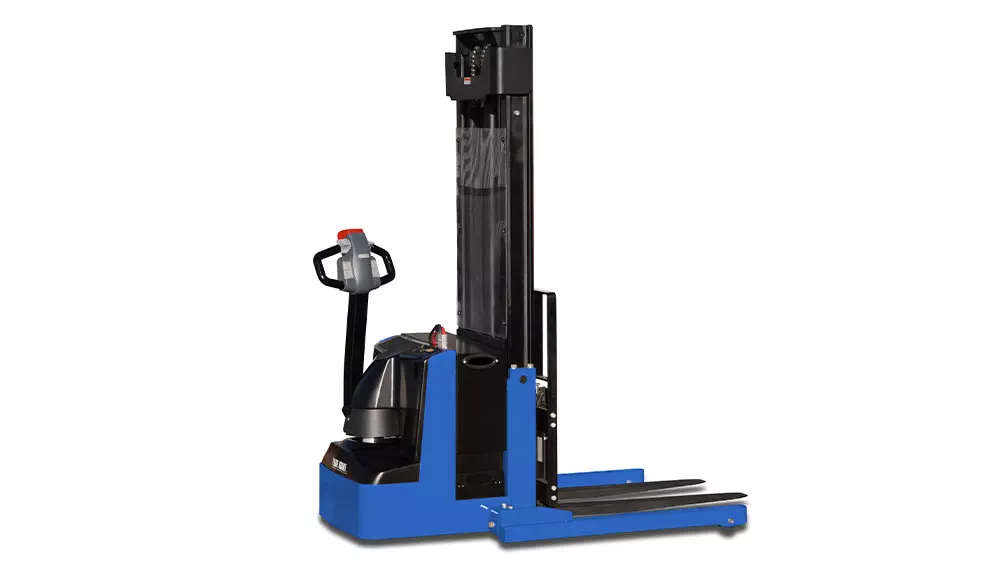

Blue Giant BGN-40 Powered Walkie Stacker
Details
The Blue Giant BGN-40 Powered Walkie Stacker builds upon proven performance standards by incorporating state-of-the art lift truck technology. It’s designed and engineered to meet and even exceed the demanding requirements of busy warehouses.
- Equipment Type
- Forklifts / Pallet Stackers
Capacity:
4,000 lbs
Lift Height:
177″ (104″, 126″, 142″, 157″ options available)
Height, mast extended:
213″
Collapsed Height:
80″
Free Lift:
28″
PERFORMANCE
- 24V AC drive motor
- 24V ZAPI programmable travel controller supports simple and precise truck positioning
- Creep speed control allows for easier maneuvering at low speeds in tight places
- Travel speed remains constant relative to throttle position regardless of the load
- Regenerative braking kicks in when the forks are 12″ (305 mm) above height
- Travel speed: 3.4mph (unloaded) and 3.1mph (under load)
ERGONOMICS
- Travel, lift, and lower functions are located in the ergonomic operator handle, which can be operated with either hand
- Hand grips fit the operator’s hand comfortably, reducing fatigue
STRUCTURAL INTEGRITY
- Bolt-on high-visibility mast
- Fork size: 42″ (1,067 mm) standard
- 3″ (76 mm) adjustable straddle legs support easy positioning in racked aisles
- 224 AH battery package (4-6 volt, maintenance-free AGM batteries), complete with automatic 25AMP / 110VAC plug-in internal charger
- I-beam construction
- Heavy-duty two-piece head cover protects major components from impact damage
