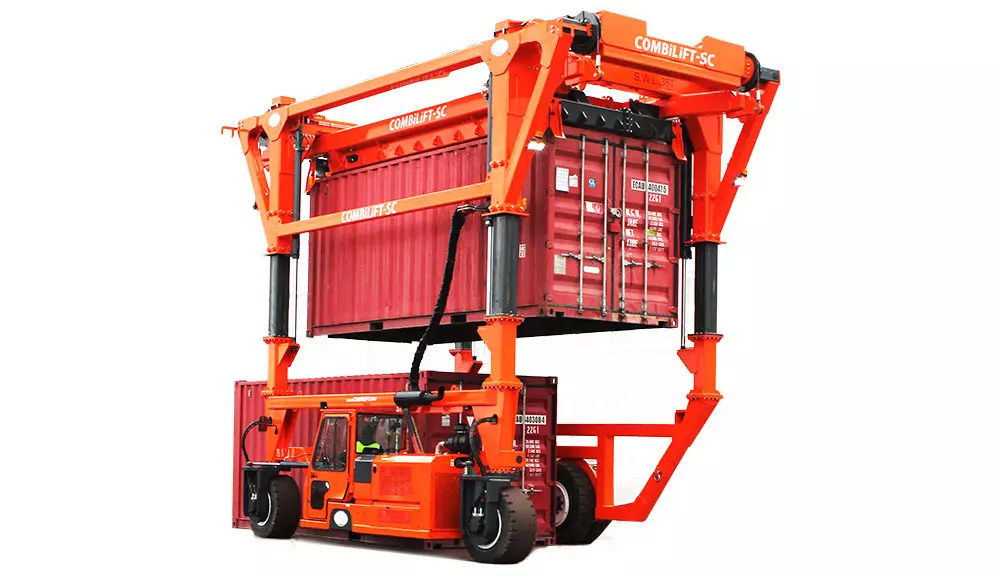

Combilift COMBI-SC3 Telescopic Chain Straddle Carrier

Details

Safety is of paramount importance for Combilift when designing all its handling solutions and the Combi-SC is no exception. Its optimum centre of gravity, broad wheelbase and exceptional 3-wheel maneuverability mean maximum load stability.

The centrally located, ground accessible cabin is designed for operator safety and comfort with 360° visibility from the cab meaning they can transport loads in confidence.

The user interface is intuitive and all functions can be carried out from within the cab reducing the need for operatives to work at height, which ensures the highest levels of operator safety and productivity.

Equipment Type
Forklifts / High Capacity

Overall Length:
338″

Overall Width:
194″

Overall Height:
194″-265″

Ground Clearance Under Cab:
11″

Height Over Cab:
91″

Track Front:
148″

Wheelbase:
227″

Width Load Area:
118″

Height Load Area:
172″-243″

Turning Radius:
285″

Capacity:
20,000 kg – 100,000kg

Unladen Weight:
42,300 lbs.

Grade-ability:
5% fully loaded

Maximum Ground Speed:
6 mph

John Deere 4045 Diesel:
125 HP

Electrics:
12 V

Tires:
4 x Super Elastic Soft Solid Tires

Standard Color:
Yellow & Gray

Suspension Seat:
KAB Model 116

Remote Control:
Optional

  • Highly customizable
  • Low ground pressure when fully loaded
  • Easy to service
  • Reduced fuel/energy consumption
  • Rough terrain & ramp friendly, works on compacted stone, bitumen and light concrete
  • Exceptional 3-wheel maneuverability
  • No brake maintenance
  • Ergonomically designed /driver friendly cab
  • Travels in/out of warehouse with ease
  • Same Unit can lift 20’, 30’, 40’, 45’ Containers
  • Side Shift Front & Rear
  • 360 degree vision when load is lifted
  • Soft Solid puncture proof tires
