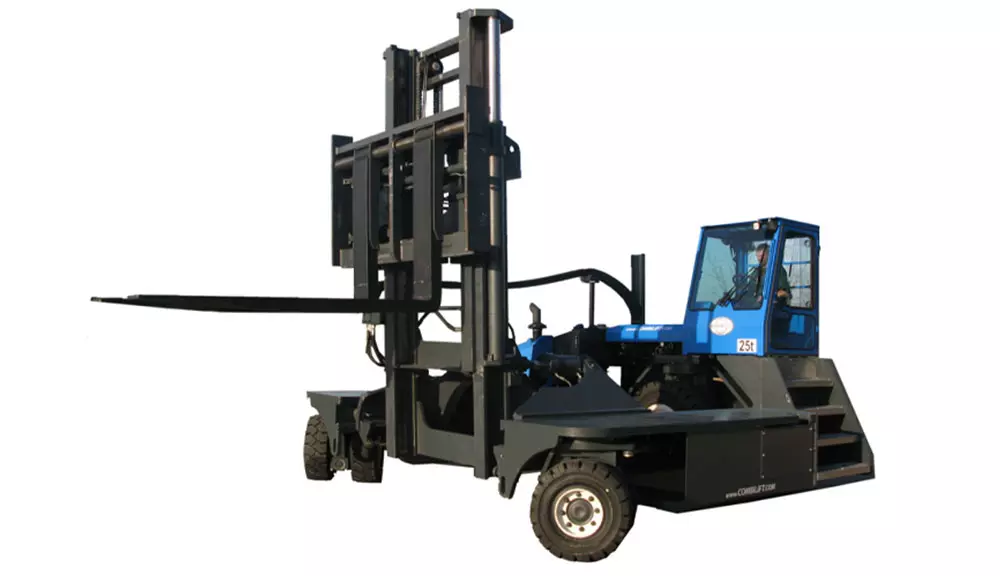

Combilift C55000 Multi-Directional Forklift

Details

The Combilift C55000 multi-directional forklift is designed for the safe, space saving and productive handling of long and bulky loads. Suitable for handling: Guided Aisles, Long Loads, Narrow Aisles and Palletized Goods.

The hardworking, versatile design of Combilift’s multi-directional range combines the advantages of a counterbalanced forklift, side loader and very narrow aisle (VNA) truck in one vehicle, for a complete solution with electric, diesel or LPG engines.

Equipment Type
Forklifts / Internal Combustion Cushion Tire Forklift Trucks

40/350-559 x4 solid rubber front tire:
OD 33” / Width 14”

465/55-20 SE x 2 super elastic rear tire:
OD 40” / Width 18”

Approach Angle:
45°

Backward Tilt:

Capacity:
55,000 lbs

Departure Angle:
45°

Electrics:
12 Volt

Fork Section:
5” x 12” x 102”

Forward Tilt:

Frame Opening :
114”

Freelift Height:
0”

Gradeability:
10%

Ground Clearance to Center of Wheelbase:
10”

Ground Clearance Under Mast:
18”

Height Mast Closed:
164”

Height Over Cab (Without work lights):
132”

John Deere Diesel Engine 6068HF:
225 HP

Length From Face of Fork:
90 ½”

Load Center Distance:
48”

Mast Travel:
106”

Max. (Mast raised):
248”

Max. Lift Height:
162”

Maximum Ground Speed:
10 mph

Minimum Outside Radius:
191”

Outside Spread of Fork Arms:
94 ½”

Overall Length:
193”

Overhang Back:
25 ½”

Overhang Front:
20 ½”

Platform Height:
45 ½”

Platform Length:
102”

Ramp Angle:
17°

Standard Color:
Green & Gray

Suspension Seat:
KAB Model 116

Track Front:
167”

Unladen Weight:
86,000 lbs

Wheelbase:
146 ½”

Width:
205”

  • Hydraulic Mounted Cabin
  • Multi Directional Operation
  • 3 Wheel Hydrostatic Drive
  • Load Sensing Steering
  • 4 Way Lever Positioning of Wheels
  • Hydraulic Oil Cooler
  • Diesel or LPG Options
