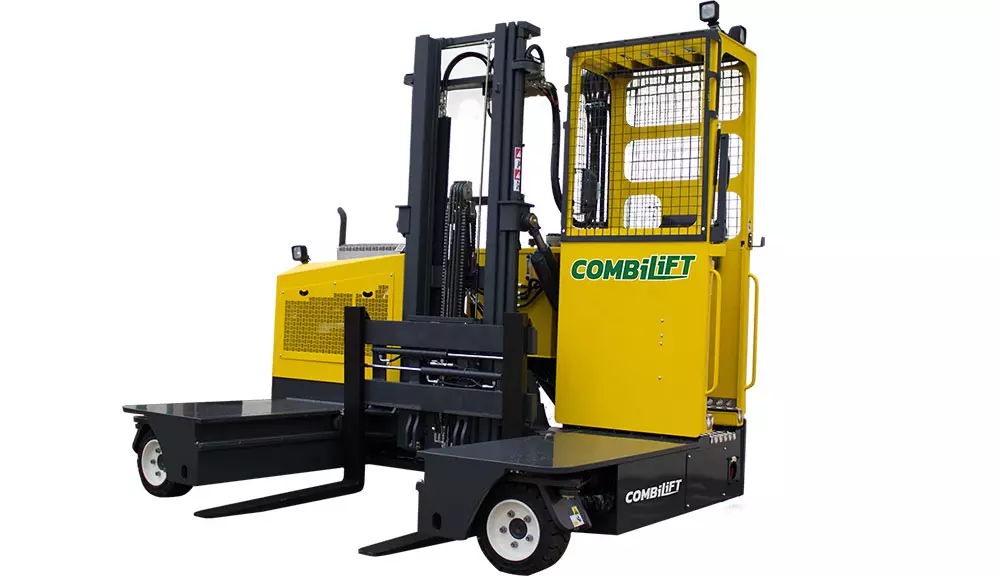

Combilift C6000 ST Multi-Directional Forklift

16 x 7 – 10.5 Front Tire (Solid):
OD 16” / Width 7”

23 x 10 &andash; 12 Rear Tire (Super Elastic):
OD 22 ¾” / Width 9 ½”

3.0 l GM LPG:
65 HP

Approach Angle:
45°

Backward Tilt:
4°

Capacity:
6,000 lbs

Departure Angle:
45°

Fork Section:
2” x 5” x 47 ¼”

Forward Tilt:
3°

Frame Opening :
59”

Free Lift Height:
0”

Gradeability:
10%

Ground Clearance to Center of Wheelbase:
5”

Ground Clearance Under Mast:
9”

Height Mast Closed:
111 ½”

Height Over Cab (without work lights):
104 ¾”

Length From Face of Fork:
31 ½”

Load Center Distance:
24”

Mast Travel:
51”

Max. (Mast raised):
204 ¼”

Maximum Ground Speed:
6 mp

Minimum Outside Radius:
95 ¼”

Outside Spread of Fork Arms:
53”

Overall Length:
78 ¾”

Overall Width:
126”

Overhang Back:
5 ¼”

Overhang Front:
8”

Platform Height:
19 ½”

Platform Length:
47 ¼”

Platform Width:
120”

Ramp Angle:
17°

Standard Color:
Green & Gray

Standard Lift Height:
159”

Track Front:
97 ¼”

Unladen Weight:
13,200 lbs

Wheelbase:
65 ½”
