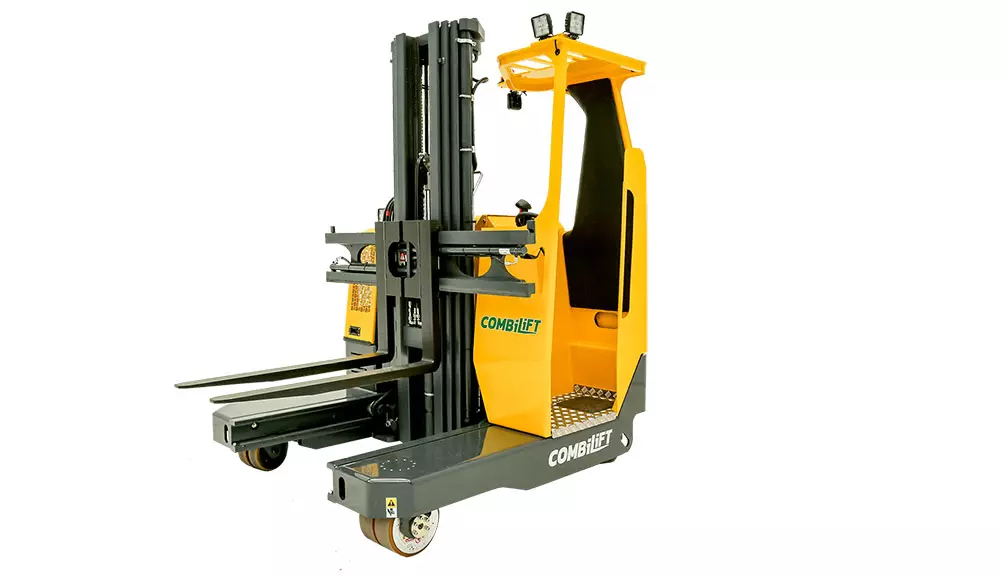

Combilift COMBI-MR Multi-Directional Reach Truck

Details

The Combilift COMBI-MR multi-directional forklift designed for the safe, space saving and productive handling of long and bulky loads. Suitable for handling: Guided Aisles, Long Loads, Narrow Aisles and Palletized Goods.

Equipment Type
Forklifts / Reach Trucks

Capacity:
5,000 lbs

Engines Types Available:
electric

Max. Lift Height:
159″

Overall Width:
73″

Platform Length:
31″

Freelift Height:
0″

Height Mast Closed:
105″

Max. (Mast raised):
187″

Overall Length:
75″

Mast Travel:
34″

Ground Clearance Under Mast:
4″

Ground Clearance to Center of Wheelbase:
4″

Height Over Cab (Without Work Lights):
98:

Width Over Forks:
83″

Track Front:
57″

Frame Opening:
37″

Load Centre Distance:
24″

Overhang Front:
8″

Wheelbase:
58/64″

Overhang Back:
9″

Length From Face of Fork:
43″

Approach Angle:
35°

Ramp Angle:
15°

Departure Angle:
35°

Forward Tilt:

Backward Tilt:

Minimum Outside Radius:
77″

Platform Height:
15″

Unladen Wight:
11,000 lbs

Maximum Ground Speed:
7 mph

Grade-ability:
7%

AC Rear Drive:
8 HP

Battery:
48 V x 750 Ah

Fork Section:
2″ x 4″ x 45″

Vulkollan Front Tire:
OD 10″ / Width 3″

Solid Rubber Rear Tire:
OD 16″ / Width 7″

Standard Color:
Yellow and Grey

  • Standing Operator Over-Head Guard
  • Multi-Direction Operation
  • AC Electric Steering
  • AC Motor Technology
  • Multi-Function Joystick
  • Optional Integrated Hydraulic Fork Position
  • Stand and Sit Down versions available.
  • Lithium-Ion Option Available
