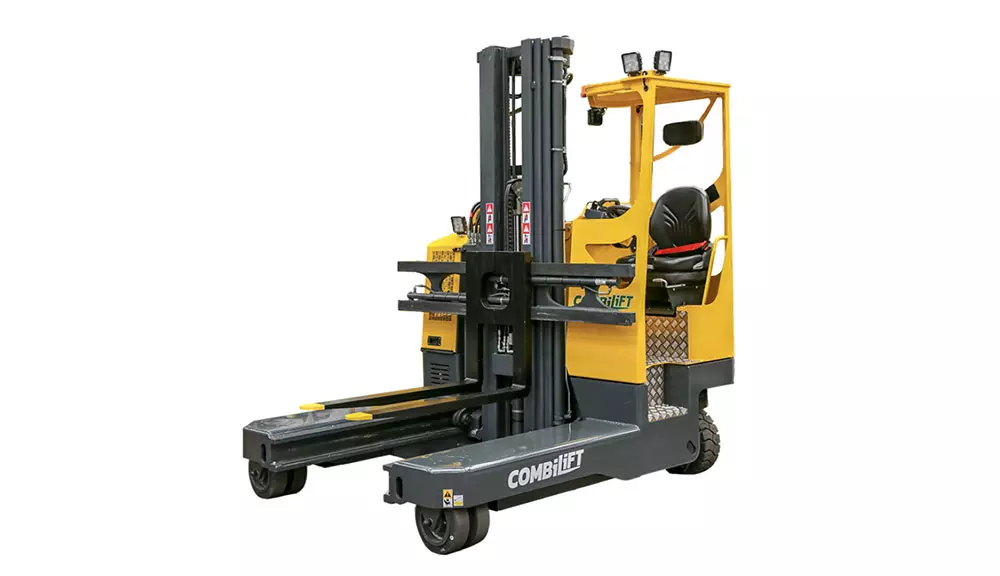

Combilift COMBI-MR4 Multi-Directional Forklift
Details
The agile Combilift COMBI-MR4 multi-directional forklift helps operators safely handle long, bulky, and palletized loads while maximizing storage space. Its Dynamic 360° Steering System enables smooth directional changes and precise maneuvering in guided aisles and narrow warehouse environments. Designed for productivity and flexibility, the COMBI-MR4 supports efficient handling of long loads, palletized goods, and other challenging materials in space-constrained operations.
Enabling multi-directional mode change on-the-go provides exceptional flexibility and movement around obstacles and in narrow working environments.
- Equipment Type
- Forklifts / Very Narrow Aisle Trucks
Capacity:
5,000 lbs – 6,000 lbs
Engines Types Available:
electric
Max. Lift Height:
Standard (5,000): 159″
Optional (6,000): 220″
Overall Width:
77″
Platform Length:
47″
Freelift Height:
Standard (5,000): 0″
Optional (6,000): 68″
Height Mast Closed:
Standard (5,000): 105″
Optional (6,000): 103″
Max. (Mast raised):
Standard (5,000): 187″
Optional (6,000): 254″
Overall Length:
90 1/2″
Mast Travel:
49″
Ground Clearance Under Mast:
4″
Ground Clearance to Center of Wheelbase:
4″
Height Over Cab (Without Work Lights):
92 1/2″
Width Over Forks:
83″
Track Front:
59″
Frame Opening:
37″
Load Centre Distance:
24″
Overhang Front:
7″
Wheelbase:
74″
Overhang Back:
10″
Length From Face of Fork:
43″
Approach Angle:
35°
Ramp Angle:
15°
Departure Angle:
35°
Forward Tilt:
2°
Backward Tilt:
4°
Minimum Outside Radius:
77″
Platform Height:
15″
Unladen Wight:
10,000 lbs
Maximum Ground Speed:
7 km/h
Grade-ability:
7%
AC Rear Drive:
6 kW
Battery:
48V x 775Ah
Fork Section:
2” x 4” x 45”
- Standing Operator Over-Head Guard
- Multi Directional Operation
- AC Electric Steering
- AC Motor Technology
- Multi-Function Joystick
- Optional Integrated Hydraulic Fork Position
