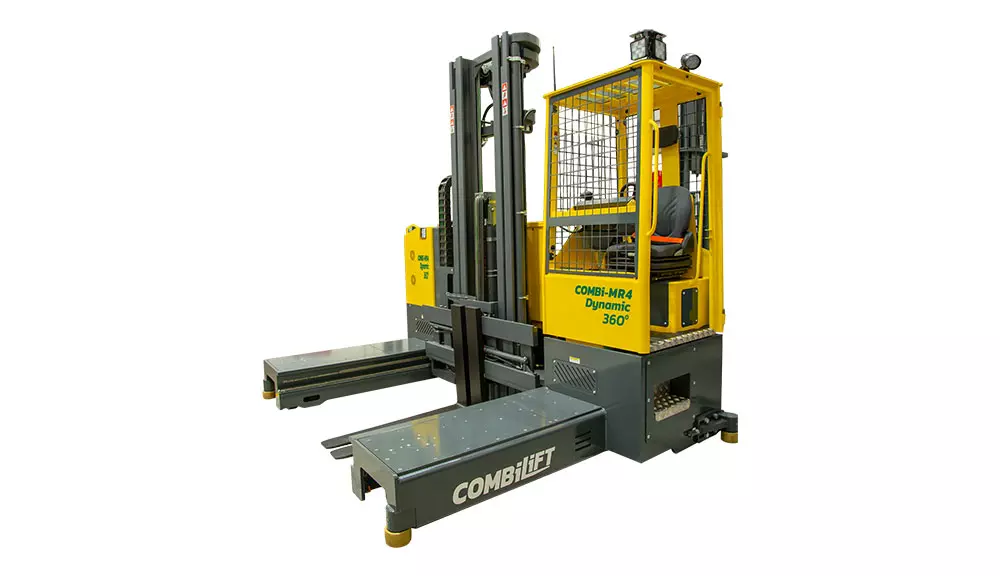

Combilift COMBI-MR4 Multi-Directional Forklift
Details
The agile Combilift COMBI-MR4 multi-directional forklift helps operators handle long, bulky, and palletized loads safely and efficiently. Its Dynamic 360°™ Steering System enables smooth directional changes and precise maneuvering in space-constrained environments. The COMBI-MR4 supports productive material handling in guided aisles, narrow aisles, and other demanding applications where maximizing storage space and load control are critical.
- Equipment Type
- Forklifts / Very Narrow Aisle Trucks
Capacity:
10,000 lbs.
Overall Width:
127″
Platform Length:
47 1/4″
Freelift Height:
17 1/2″
Height Mast Closed:
107 3/4
Max. (Mast raised):
250 1/2″
Overall Length:
86 1/2″
Mast Travel:
52 3/4″
Ground Clearance Under Mast:
4 3/4″
Ground Clearance to Center of Wheelbase:
4″
Height Over Cab (Without Work Lights):
97 1/4″
Width Over Forks:
63″
Track Front:
89 1/2″
Frame Opening:
65″
Load Centre Distance:
23 5/8″
Overhang Front:
10 1/2″
Wheelbase:
72 1/4″
Overhang Back:
10 1/2″
Length From Face of Fork:
39″
Approach Angle:
35°
Ramp Angle:
15°
Departure Angle:
35°
Forward Tilt:
2°
Backward Tilt:
4°
Minimum Outside Radius:
79″
Platform Height:
16 1/2″
Unladen Wight:
15,432 lbs
Maximum Ground Speed:
6 mph
Grade-ability:
10%
AC Rear Drive:
2 x 8kW
Battery:
775Ah 80V
Fork Section:
2″ x 4″ x 49″
- Standing Operator Over-Head Guard
- Multi Directional Operation
- AC Electric Steering
- AC Motor Technology
- Multi-Function Joystick
- Optional Integrated Hydraulic Fork Position
