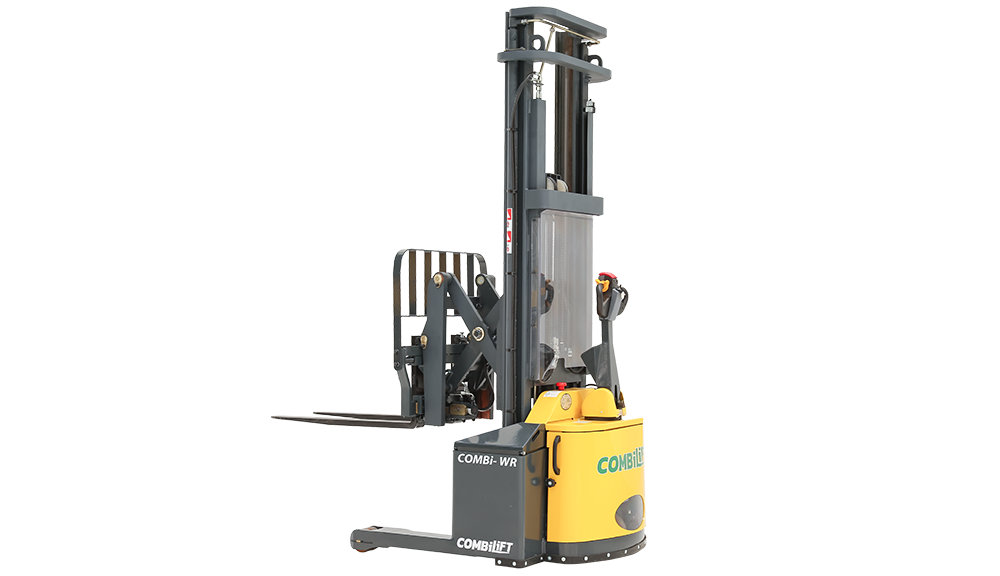

Combilift COMBI-WR Reach Stacker

Details

The Combilift COMBI-WR is the first purpose-built pedestrian reach stacker combining innovative features and effortless operation.

Equipment Type
Forklifts / Reach Trucks

Capacity:
3200 lbs @ 125″ lift

Maximum Lift Height:
118″ (165″ & 192″ options available)

Free Lift Height:
35″ (59″ & 73″ options available)

Height Mast Closed:
83″ (106″ & 120″ options available)

Max. (Height Raised)
165″ (216″ & 240″ options available)

Overall Length:
77″

Fork Travel:
23″

Ground Clearance Under Mast:
3″

Ground Clearance to Center of Wheelbase:
2″

Width:
52″

Outside Spread of Fork Arms:
32″

Track Front:
46″

Frame Opening:
41 ½”

Load Center Distance:
24″

Overhang Front:
24″

Wheelbase:
46″

Overhang Back:
7″

Fork Side Shift:
3″ left / 3″ right

Length from Face of Fork:
34 ½”

Fork Backward Tilt:

Fork Forward Tilt:

Minimum Outside Radius:
53″

Leg Height:
5″

Leg Length:
21″

Unladen Weight:
5,000 lbs (5,700 lbs & 5,950 lbs options available)

Maximum Ground Speed:
3 ¾ mph

Gradability:
5%

Battery Capacity:
24 V / 270 Ah

Fork Section:
1 ½” x 4″ x 42″

Front Tire (Polyurethane):
OD 5″ / Width 3″

Rear Tire (Vulkollan):
OD 10″ / Width 3″

Standard Color:
Yellow & Grey

AC Electric Traction Motor:
24V / 3.35 HP

AC Electric Pump Motor:
24V / 6.7 HP

  • Power Steering
  • Patented Multi-Position Tiller Arm
  • 3/3″ Side Shift
  • 47″ High Load Back Rest
  • Pantograph
  • Rear Wheel Drive
  • AC Motor Technology
