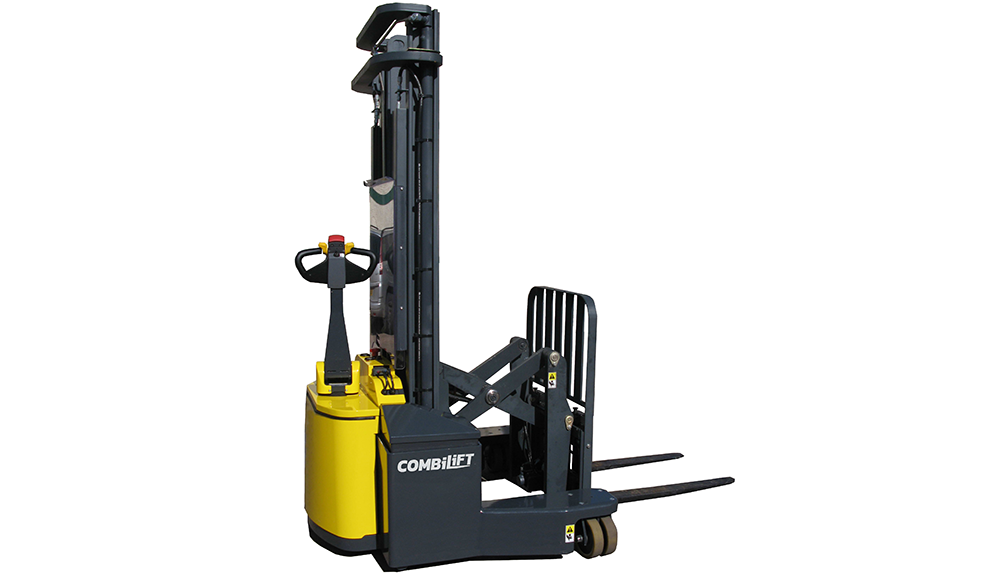

Combilift COMBI-WR4 Reach Stacker

Details

The Combilift COMBI-WR4 is the first purpose-built 4-way pedestrian reach stacker combining multi-directional travel, innovative features and effortless operation, even in the most demanding environments. For the handling of lighter loads, many operations increasingly favor the use of pedestrian trucks or walkie reach stackers which offer a number of advantages over ride-on forklifts.

Equipment Type
Forklifts / Reach Trucks

Capacity:
3,200 lbs @ 125″ lift

Max. Lift Height
118″ (165″ & 193″ options available)

Free Lift Height:
35 ½” (59″ & 73″ options available)

Height Mast Closed:
83″ (106″ & 120″ options available)

Max. (Mast Raised):
165″ (213″ & 240″ options available)

Overall Length:
77″

Fork Travel:
23″

Ground Clearance Under Mast:
3″

Ground Clearance to Center of Wheelbase:
2″

Width:
59 ½”

Outside Spread of Fork Arms:
32″

Track Front:
51″
Frame Opening:
41 ½”

Load Center Distance:
24″

Overhang Front:
26″

Wheelbase:
44″

Overhang Back:
7″

Fork Side Shift:
3″ Left / 3″ Right

Length From Face of Fork:
34 ½”

Fork Backward Tilt:

Fork Forward Tilt:

Minimum Outside Radius:
53″

Leg Height:
11″

Leg Length:
21″

Unladen Weight:
5,700 lbs (6,000 lbs & 6,200 lbs options available)

Maximum Ground Speed:
3 ¾ mph

Gradability:
5%

Battery Capacity:
24V / 270 Ah

Fork Section:
1 ½” x 4″ x 42″

Front Tire x 4 (Polyurethane)
OD 8″ / Width 2″

Rear Tire (Vulkollan)
OD 10″ / Width 3″

Standard Color:
Yellow & Grey

AC Electric Traction Motor:
24V / 3.35 HP

AC Electric Pump Motor
24V / 6.7 HP

  • Pantograph
  • Power Steering
  • AC Motor Technology
  • Multi-Directional
  • 47″ High Load Back Rest
  • Rear Wheel Drive
  • 3/3″ Side Shift
  • Patented Multi-Position Tiller Arm
