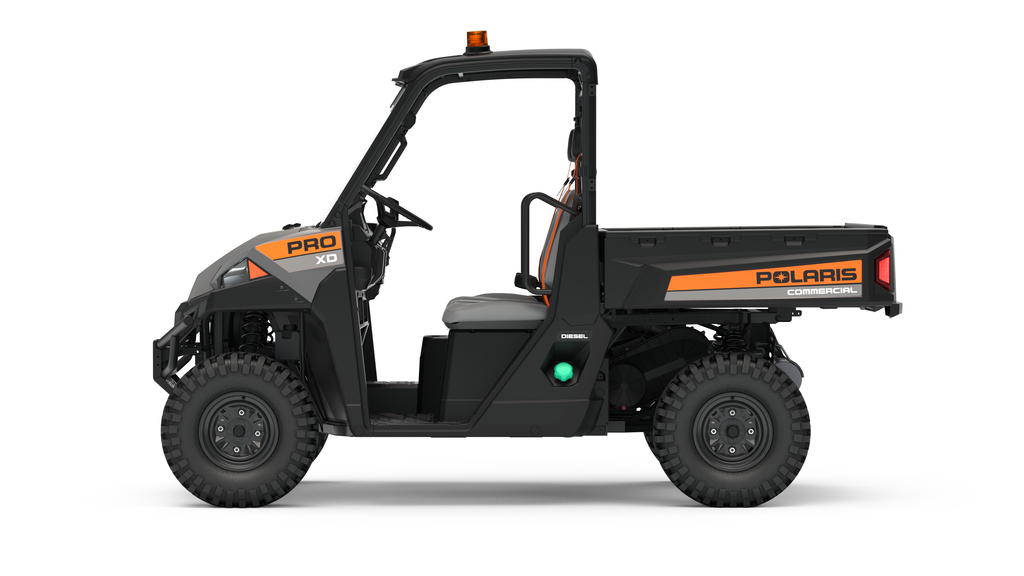

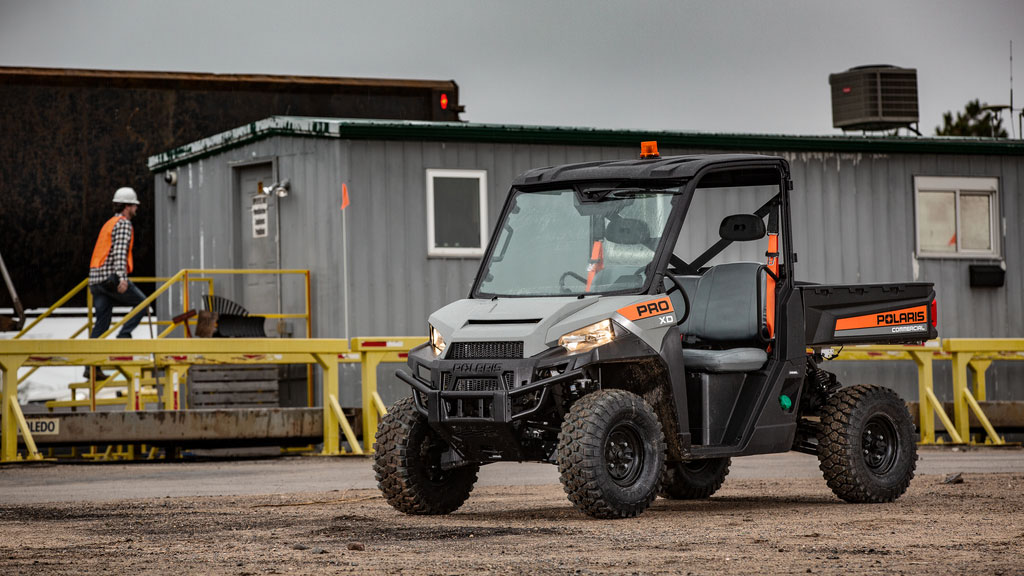

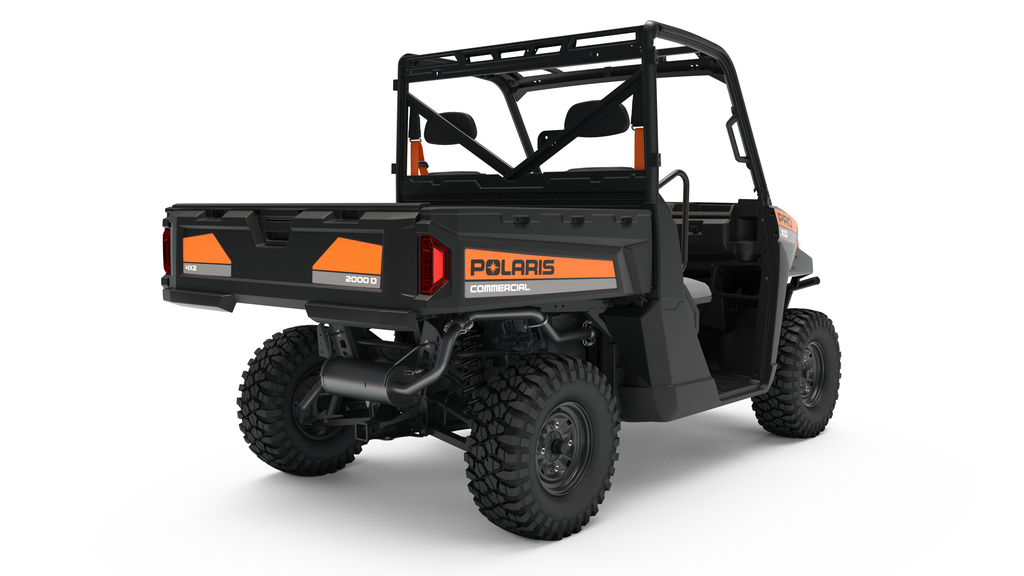

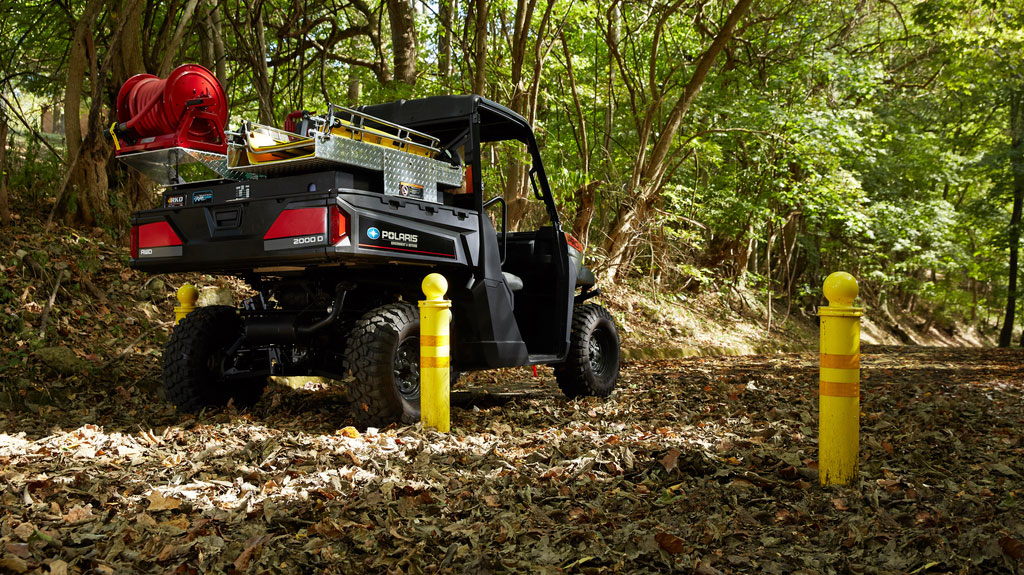

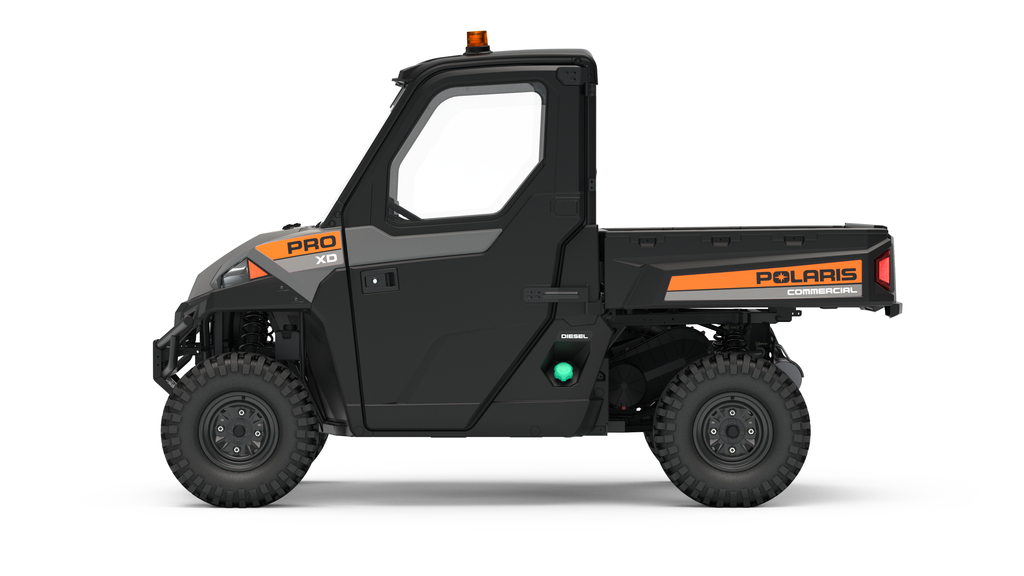

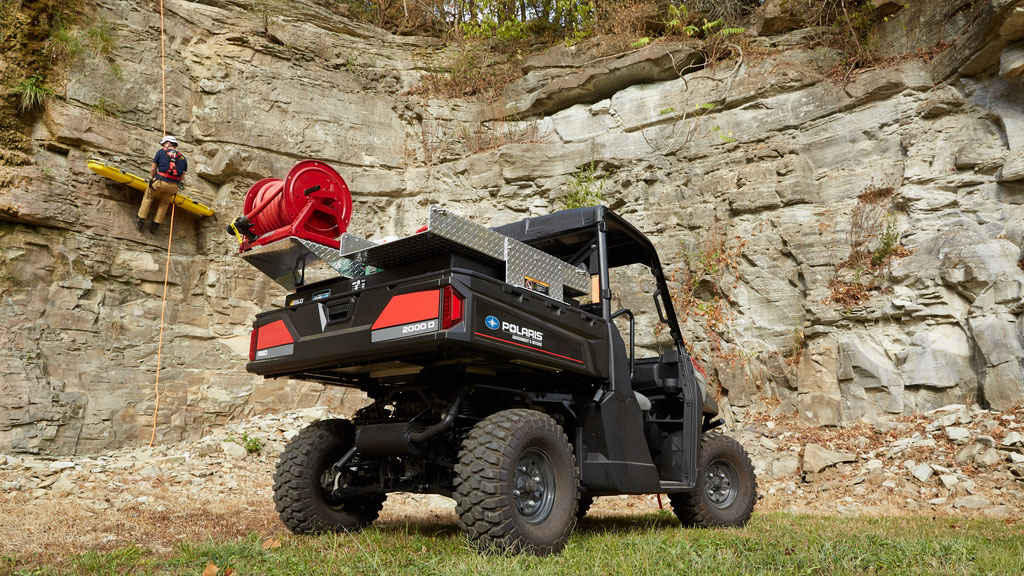

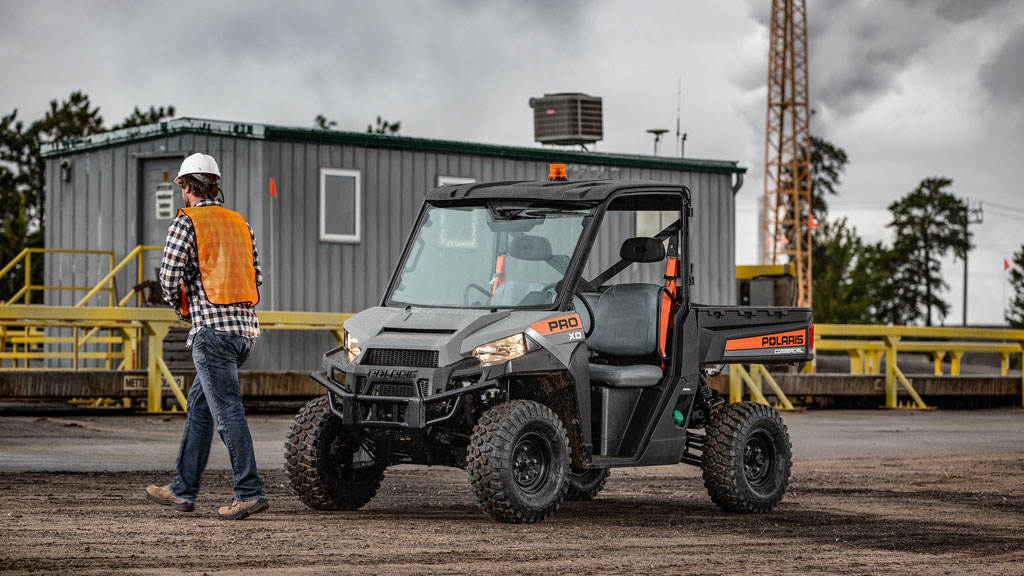

Pro XD Full-Size Diesel Utility Vehicle

Engine & Drivetrain

Air Intake
Front Air Intake with Donaldson® Cyclonic Air Filter

Cooling
Liquid

Cylinders Displacement
898 cc

Drive System Type
On-Demand 4×4

Engine Type
3-Cylinder Kubota® Diesel

Fuel System/Battery
Mechanical Injection

Horsepower
24.5 HP

Maintenance Interval
200 Hours (50 Hour initial)

Top Speed
26 mph (41 km/h)

Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
43.5 x 54 x 11.5 in (110.5 x 137 x 29 cm)

Box Capacity
1,250 lb (567 kg)

Estimated Dry Weight
1,592 lb (723 kg)

Fuel Capacity
11.5 gal (43.5 L)

Ground Clearance
11 in (27.9 cm)

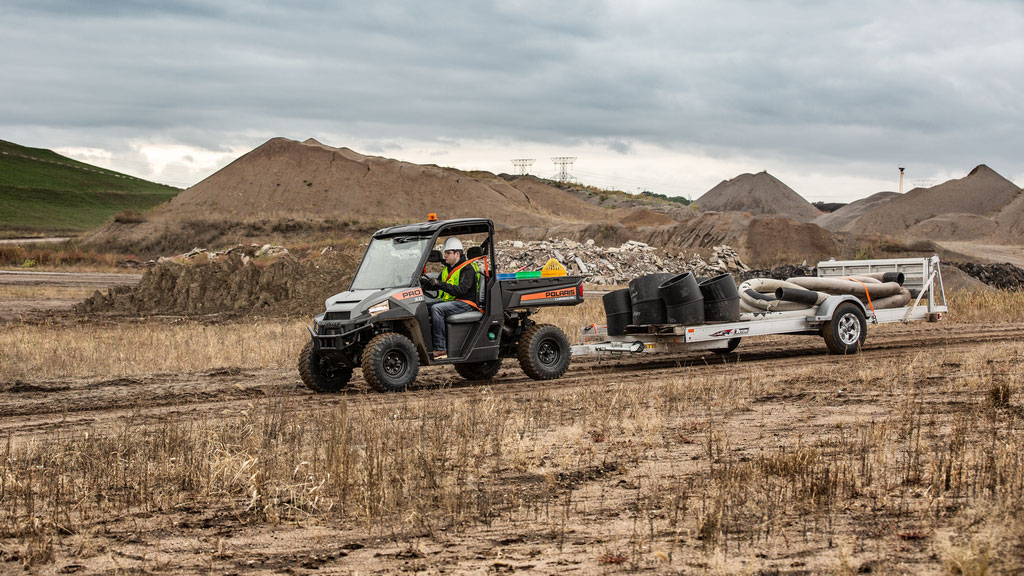

Hitch Towing Rating
2,500 lb (1,134 kg)

Overall Vehicle Size (L x W x H)
126 x 62.5 x 75 in (320 x 159 x 191 cm)

Payload Capacity
1,900 lb (862 kg)

Person Capacity
2

Turning Radius
112 in (284 cm)

Wheelbase
85 in (215.9 cm)

Tires / Wheels

Electronic Power Steering
Optional

Front Tires
26 x 10-12 Duro® DI-2042 Power Grip (M/T)

Hubs
Front: Steel; Rear: Ductile Iron

Rear Tires
26 x 10-12 Duro® DI-2042 Power Grip (M/T)

Wheels
12 x 6 HD Steel – Gloss Black

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers

Parking Brake
Park in Transmission + Separate Mechanical Parking Brake Standard

Suspension

Front Suspension
9 in (22.9 cm)

Rear Suspension
9 in (22.9 cm)

Additional Specifications

Adjustable Driver Seat
Not Equipped

Cargo System
Lock & Ride

Hitch Type
Standard 2 in (5 cm) Receiver

Lighting
55W low/ 60W high, LED Tail

Other Standard Features
Horn, Backup Alarm

Seat Covering
Kevlar®-Backed Vinyl (Grey)

Tilt Steering
Standard

Instrumentation
All Digital Gauge, Speedomoter, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Engine Temperature, Hi-Temp Light, Clock, Clutch Belt Slip Warning, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator, Parking Brake Engaged Alarm
