Details
Power & Charging
The vehicle uses a 24V DC electric power system with a 5.2 HP motor. A 400 amp solid-state controller is programmable and includes regenerative motor braking and self-diagnostics. The intelligent on-board charger accepts 110-240V, 50/60Hz input and provides 650W output.
Drive, Brakes & Construction
The direct-drive system uses an automotive differential with a 16.99:1 drive ratio. Rear-wheel mechanical drum brakes are auto-adjusting, with a foot-operated parking brake. The unitized frame uses powder-coated smooth plate steel with a 10-gauge structure, 14-gauge skin, and integrated front bumper.
Safety & Standard Equipment
Safety features include driver seat and charger anti-drive-away interlocks, a reverse warning alarm, and brake light. Standard accessories include a convertible rear seat, tiller steering, horn, central fuse block, battery discharge indicator, and 2″ hitch receiver. A front bumper and hour meter are also included.
Capacity & Performance

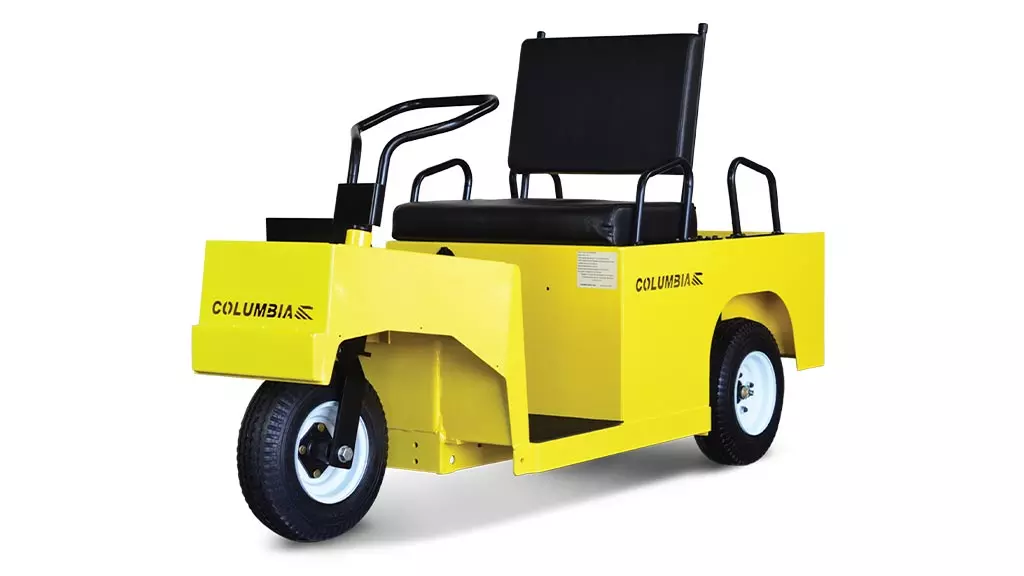

Rated capacity ranges from 650 to 750 lbs*, with seating for 1 to 2 passengers*. Maximum speed is 9 MPH forward and 4 MPH in reverse. The Expediter configuration includes one forward-facing and one rearward-facing passenger, a 21.50″ L x 26″ W cargo deck, a 750 lb rated capacity, two-passenger seating, and tiller steering.
Battery, Tires & Colors
The standard-capacity battery pack is 24V and 232 amp hour, with a 122-minute rating and four six-volt batteries. Tires are 4.80″ x 8″, 4-ply, load range B. Featured colors are available at no additional charge, with Safety Yellow as the standard color.
