Bendi B40AC Forklift
Details

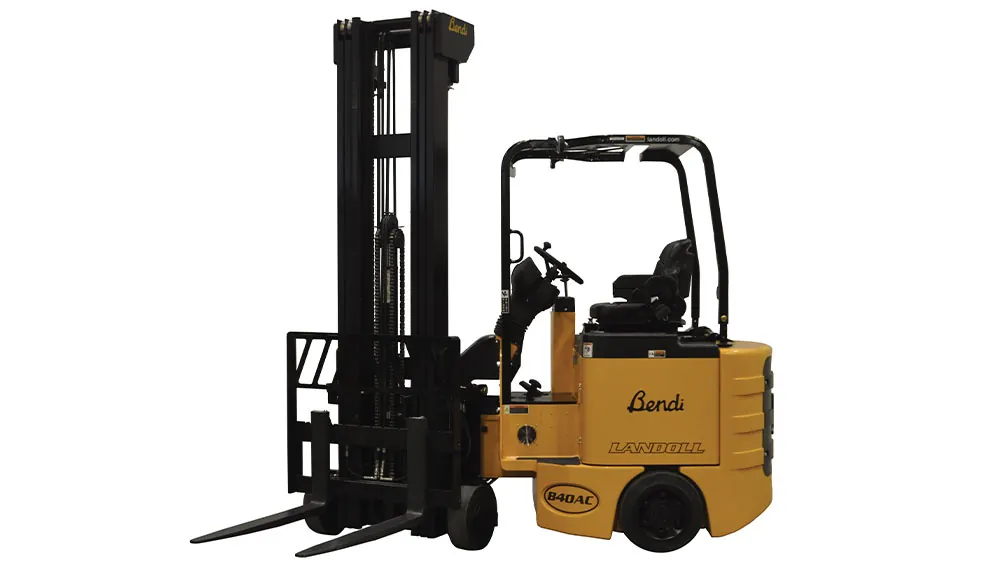

Bendi Rear Wheel Drive Narrow Aisle Multipurpose Electric Forklift
The Bendi B40AC forklift delivers the versatility, lifting performance, and maneuverability required for warehouse and material handling operations. With lift capacities up to 4,000 lbs., lift heights up to 26 feet, and operation in aisles as narrow as 78 inches, it helps operators maximize storage space and improve workflow efficiency.
The Bendi B40AC is a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available making this unit excellent for loading/unloading trailers and containers. The B40AC can also work inside and outside on paved surfaces and has a floating front axle allowing the truck to ride smoothly over uneven floors. The Bendi B40AC does all of the jobs of reach and counterbalanced trucks but in much narrower aisles.
Exceptional Performance and Maneuverability
he Bendi B40AC forklift features a four-wheel articulating design, dual independently driven rear tires, and Landoll DuraSteer front-wheel hydraulic steering for exceptional control and handling. Excellent traction, braking, and power help operators travel confidently on ramps, uneven floors, and paved outdoor surfaces.
Maximizes Material Handling Productivity
The Bendi B40AC forklift combines the capabilities of a counterbalance forklift and a reach truck in a single machine. It operates in narrow warehouse aisles, handles loading and unloading tasks, and moves efficiently between trailers, storage racks, and work areas. Large-diameter tires and generous ground clearance help operators navigate floor obstacles while maintaining productivity throughout the facility.
*Based on 48” (1200 mm) long x 40” (1000 mm) wide load.
- Equipment Type
- 4-Wheel Electric Forklift Trucks for Sale / Forklifts
Capacity:
4,000 lbs (1,814 kg)
Travel Speed:
Loaded: 6.5 mph (10.5 kph)
Unloaded: 7 mph (11.3 kph)
Lift Speed:
Loaded: 90 fpm (27.4 mpm)
Unloaded: 110 fpm (33.5 mpm)
Lowering Speed:
Loaded: 100 fpm (30.4 mpm)
Unloaded: 90 fpm (27.4 mpm)
Wheelbase:
63 in (1,600 mm)
Overall Width:
50 in (1,270 mm)
Battery Compartment Height (Floor to Top of Battery Tray):
19 in (483 mm)
Max Lift Height:
374 in (9.50 m)
- 4,000 lb. (1814 kg) Capacity at 24″ (600 mm) Load Center
- Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- High Visibility Mast Allows Optimum Safety and Control
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High-Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System
- Optional Cold Storage Conditioned to -22°F (-30°C)
