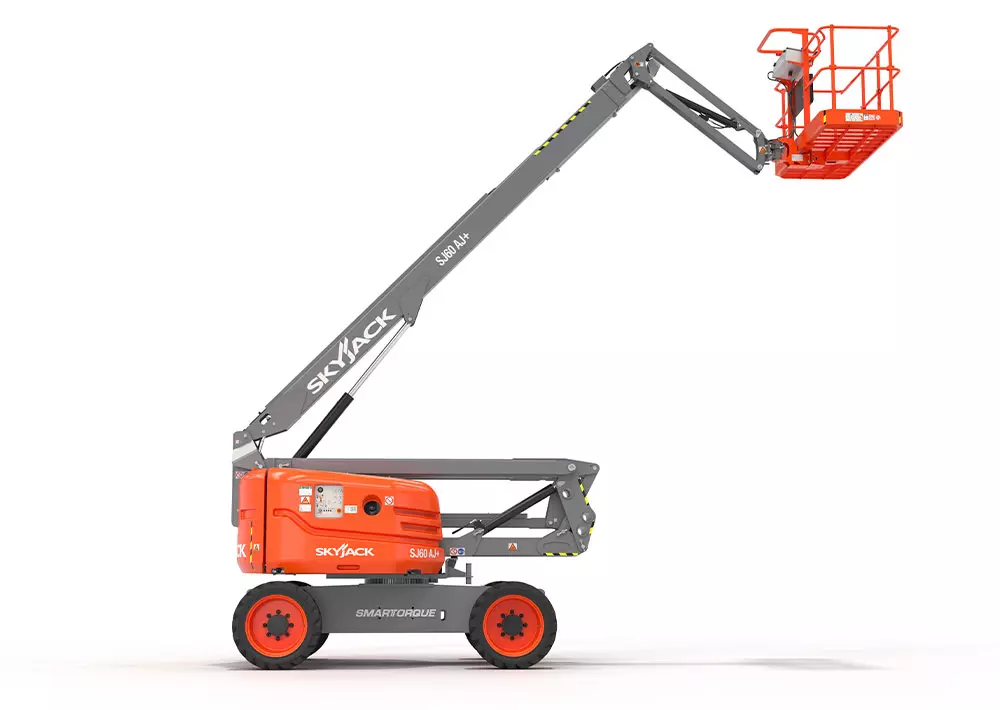

Skyjack SJ60 AJ+ Boom Lift
Details
The Skyjack SJ60 AJ+ articulating boom lift uses SMARTORQUE™ technology and a data-driven design to maximize efficiency and jobsite performance. By combining optimized gearing with a simplified, high-efficiency hydraulic system, it delivers the capabilities operators need while reducing engine power requirements.
Equipped with a 25 hp engine, the SJ60 AJ+ provides performance comparable to higher-horsepower units, helping improve productivity, fuel efficiency, and overall return on investment.
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Work Height
66’ (20.11 m)
Platform Height:
60’ (18.29 m)
Up and Over Height:
27’ 2” (8.31 m)
Platform Size:
36” x 96” (0.91 x 2.44 m)
Weight:
18,865 lbs (8,557 kg)
Drive Speed (High Speed):
2.5 mph (4.0 km/h)
Capacity:
660 / 1,000 lbs (300 / 454 kg)
Horizontal Reach:
37’ 11” (11.56 m)
Diesel Engine:
Kubota D1305 – 24.8 HP (18.5 KW)
Fuel Tank Capacity:
30.4 gal. (115L)
- EASYDRIVE™ Direction sensing drive and steer controls
- SPEEDYREACH™ Negative boom angle capability
- SKYRISER™ True vertical rise
- AXLDRIVE™ Axle-based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Oscillating steer axle
- Drivable at full height
- 40% Grade-ability
- Wet disc SAHR brakes (front and rear axle)
- Dual module control system with SKYCODED™ color coded and numbered wiring
- Kubota D1305 Tier 4F diesel engine
- Swing up cowlings for easy access
- Lockable power disconnect switch
- Proportional controls
- 660 / 1,000 lbs Dual Capacity
- 36 x 96” Platform
- Bolt-in platform railing system
- Lanyard attachment points
- Tri-entry sliding mid rails
- Secondary Guarding Electrical (SGE)
- Overload sensing system
- 110V AC Outlet on platform with GFI
- Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
- Single point emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- 360° Continuous turret rotation
- Tie down/lifting lugs
- Grip lug foam-filled tires
- Telematics ready
- 2 Year Gold Leaf Warranty (5 year structural warranty)
